Description

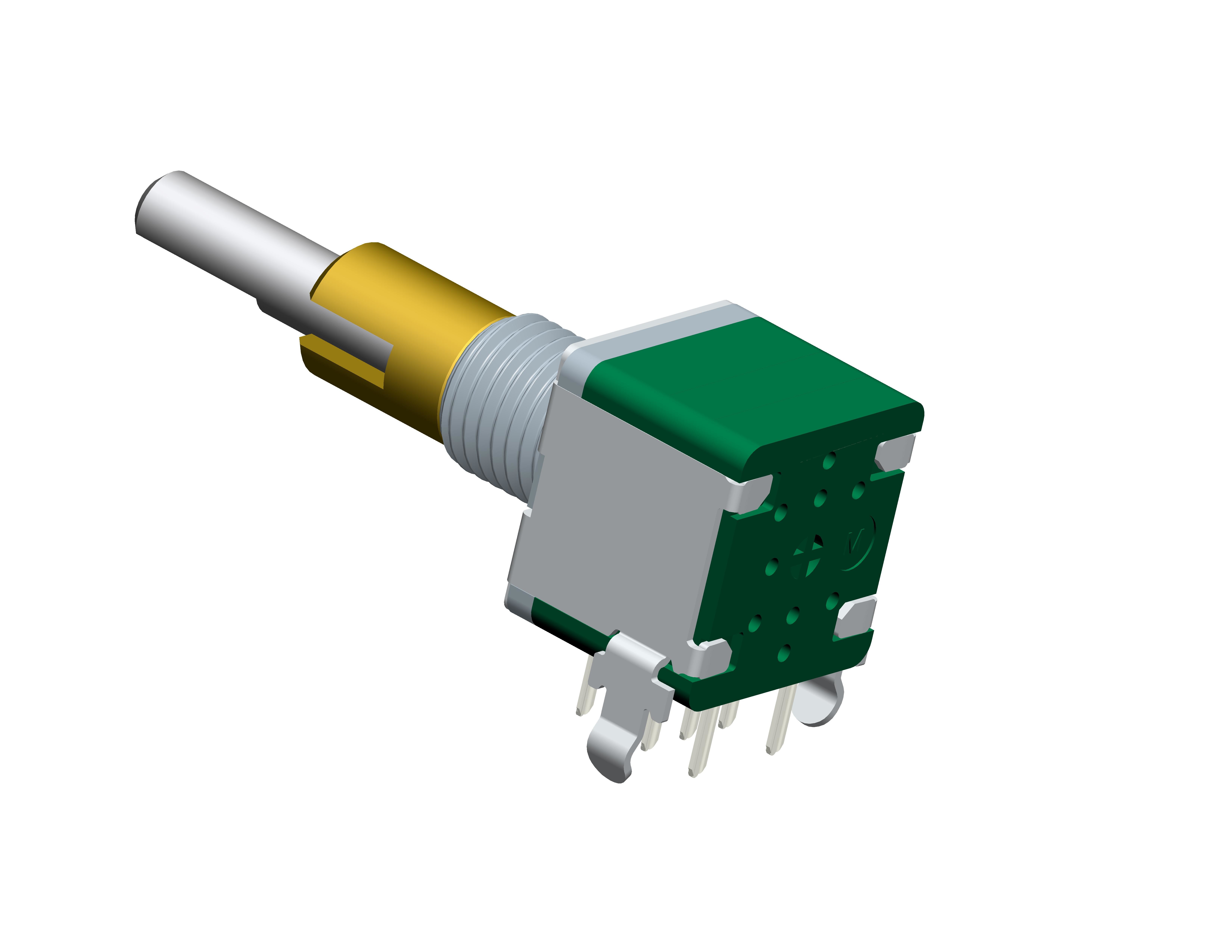

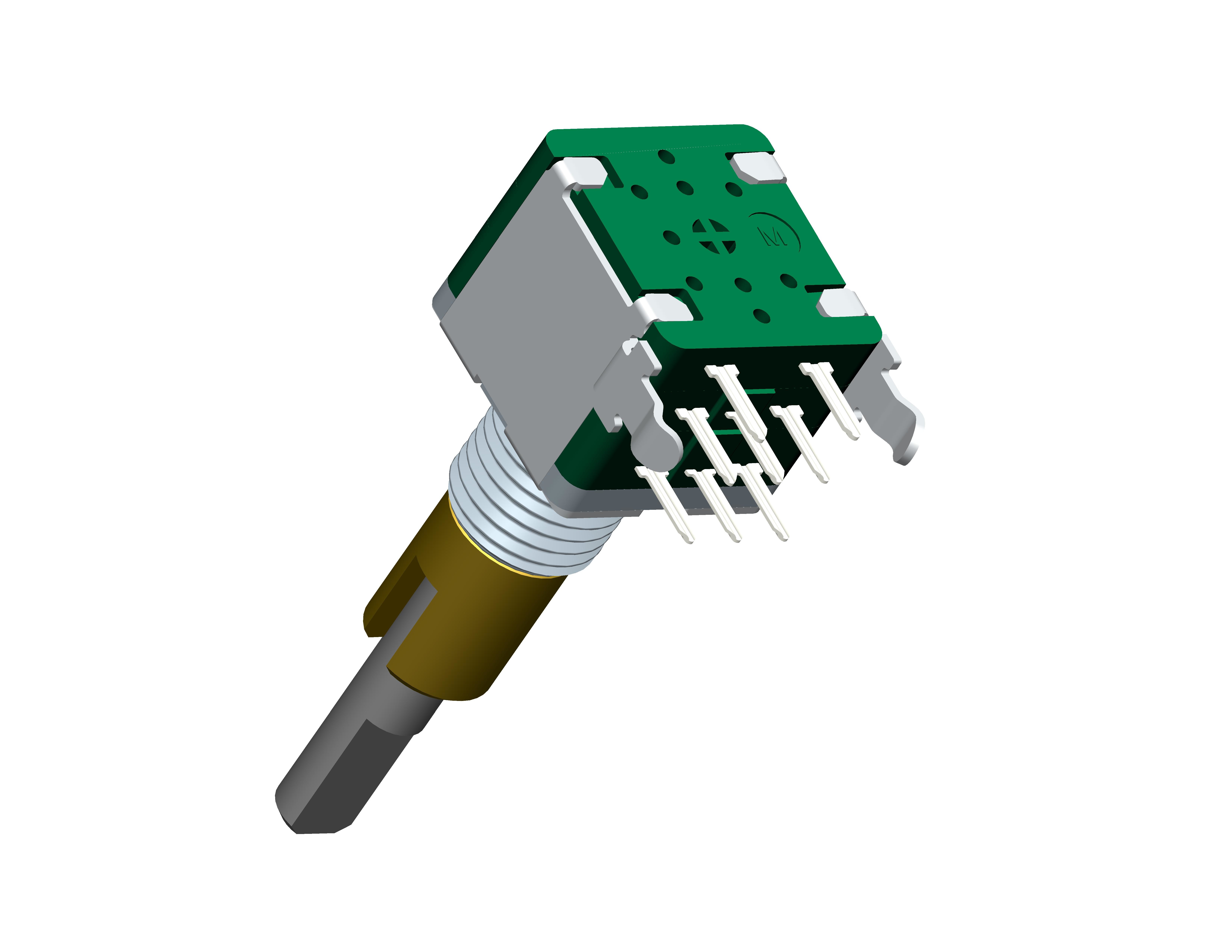

Dual shaft encoder have inner shaft and outer shaft, The Inner shaft is a 15 pulses encoder with a 0.5mm travel push swith. The outer shaft is a self return toggle switch.
Specification
| Mechanical characteristics |
| Stopper strength |
3kgf.max |
| Rotational torque: |
20~200gf.cm |
| Rotational stopper strength : |
3Kgf Max |
| Detent: |
inner shaft 30detents |
| push-pull strength: |
8Kgf. max |
| Vibration: |
10 to 50 to 10 Hz/min. the amplitude is 1.5mm for all the frequencies. |
| Electrical characteristics |
| Insulation resistance : |
100mΩ min. 250V DC |
| Number of pulse/detent |
15P 30detents inner shaft |
| Voltage proof: |
300V AC for one minute |
| Environmental characteristics |
| Cold: |
-40ºC±2ºC for 96h |
| Dry heat: |
85ºC±2ºC for 96h |
| Damp heat: |
40±2ºC, 90 to 95%RH for 96H |
| Switch characteristics |
| Rated power: |
0.1A 5V DC |
| Switch Torque: |
Max 500± 200gf.cm |
| Switch Travel: |
0.5mm± 0.3mm |
| Switch type: |
self return outer shaft |
| Circuit number: |
PUSH switch for inner shaft |
| Voltage proof: |
300V AC for one minute |
| Operating life without load: |
100,000 cycles 100mΩ max |
| Operating life with load: |
100,000 cycles 200mΩ max |
| Initial contact resistance: |
100mΩ max |
| Insulation resistance : |
100mΩ min.250V DC |
Features
1.Highly reliable performance sealed design encoder.
2. Push switch with 0.5mm travel ,1.5mm travel switch available, outer shaft self return encoder.
3. Shaft length and shape type can be customized.
4. Horizontal DIP Mount
5. Compliant with RoHS2.0 Directive
6. Small Volume Order Acceptable
