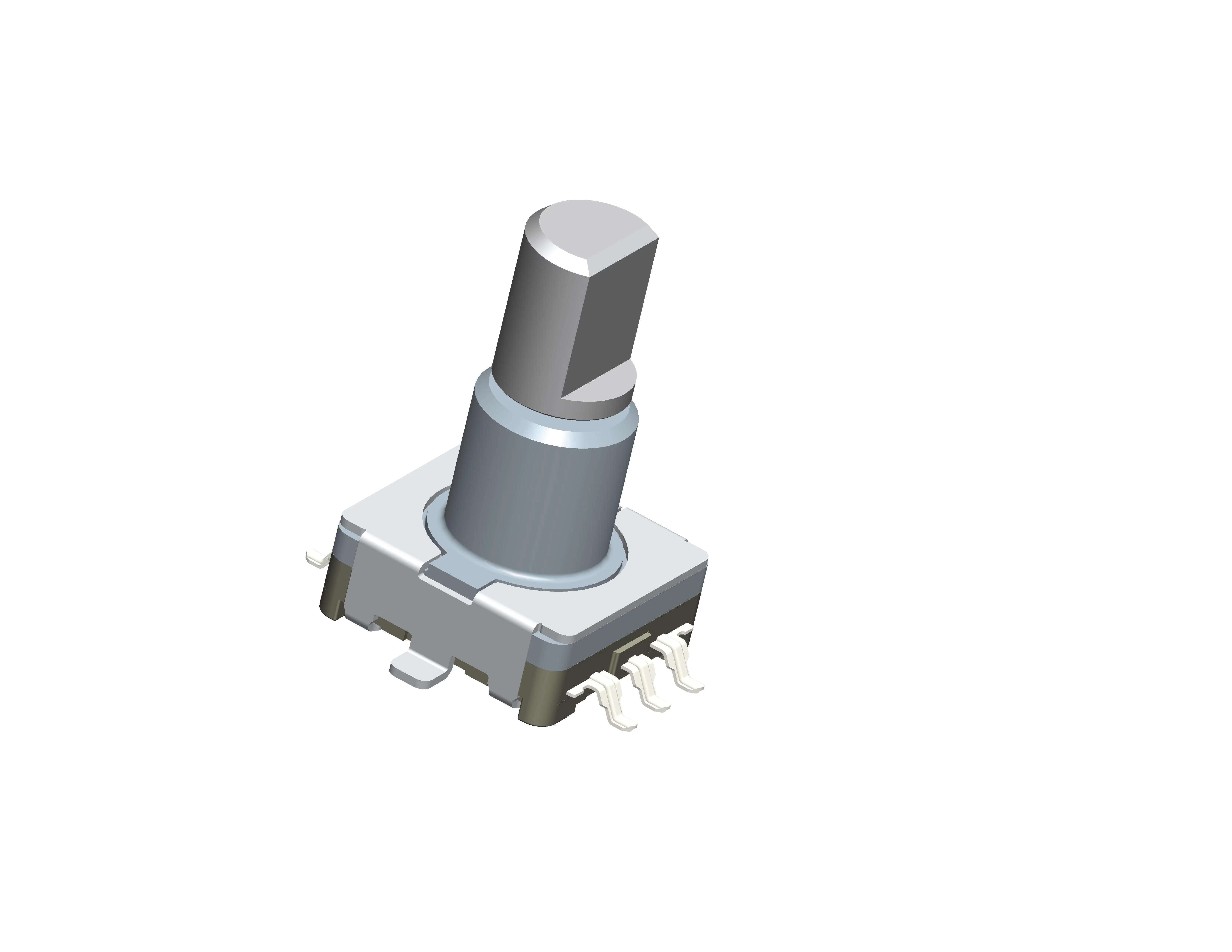

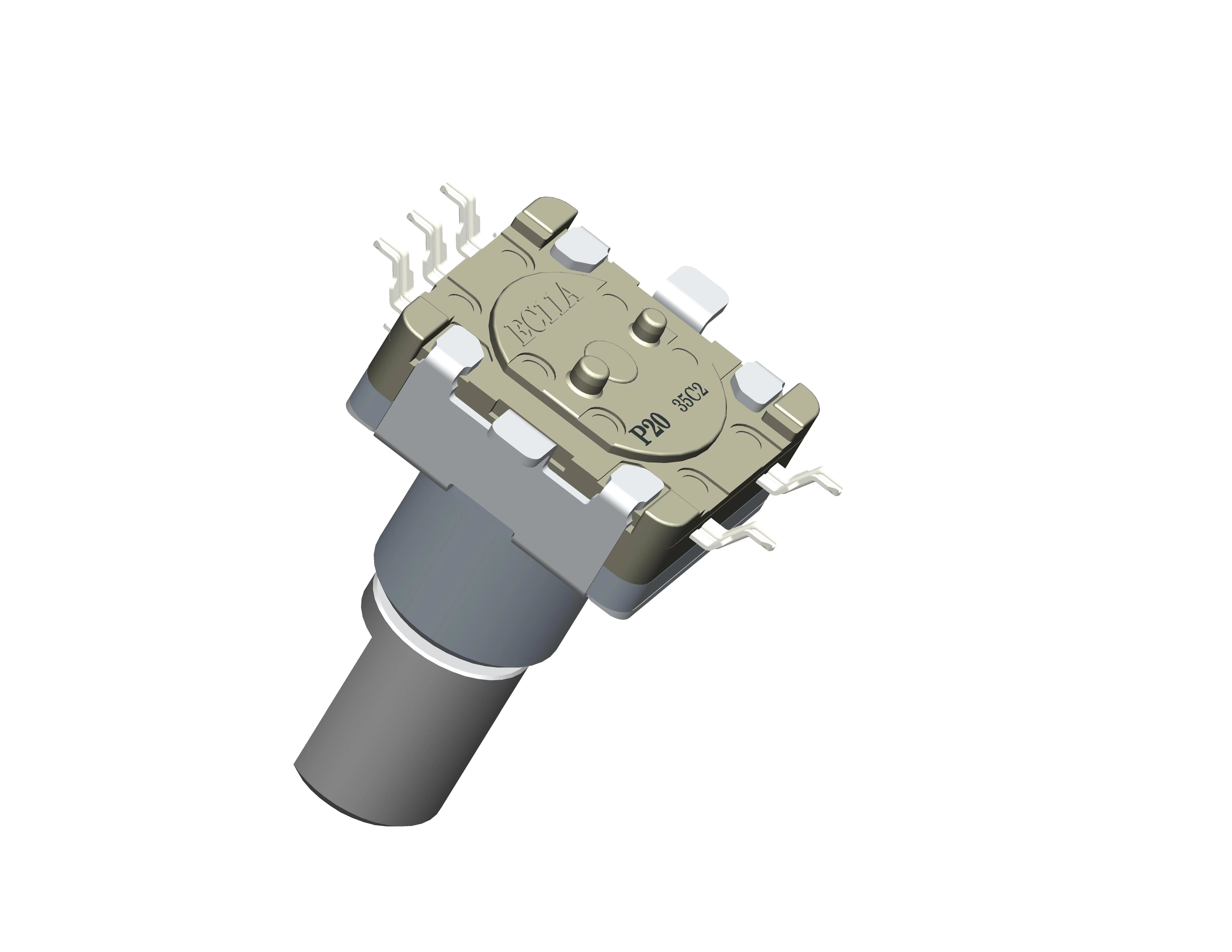

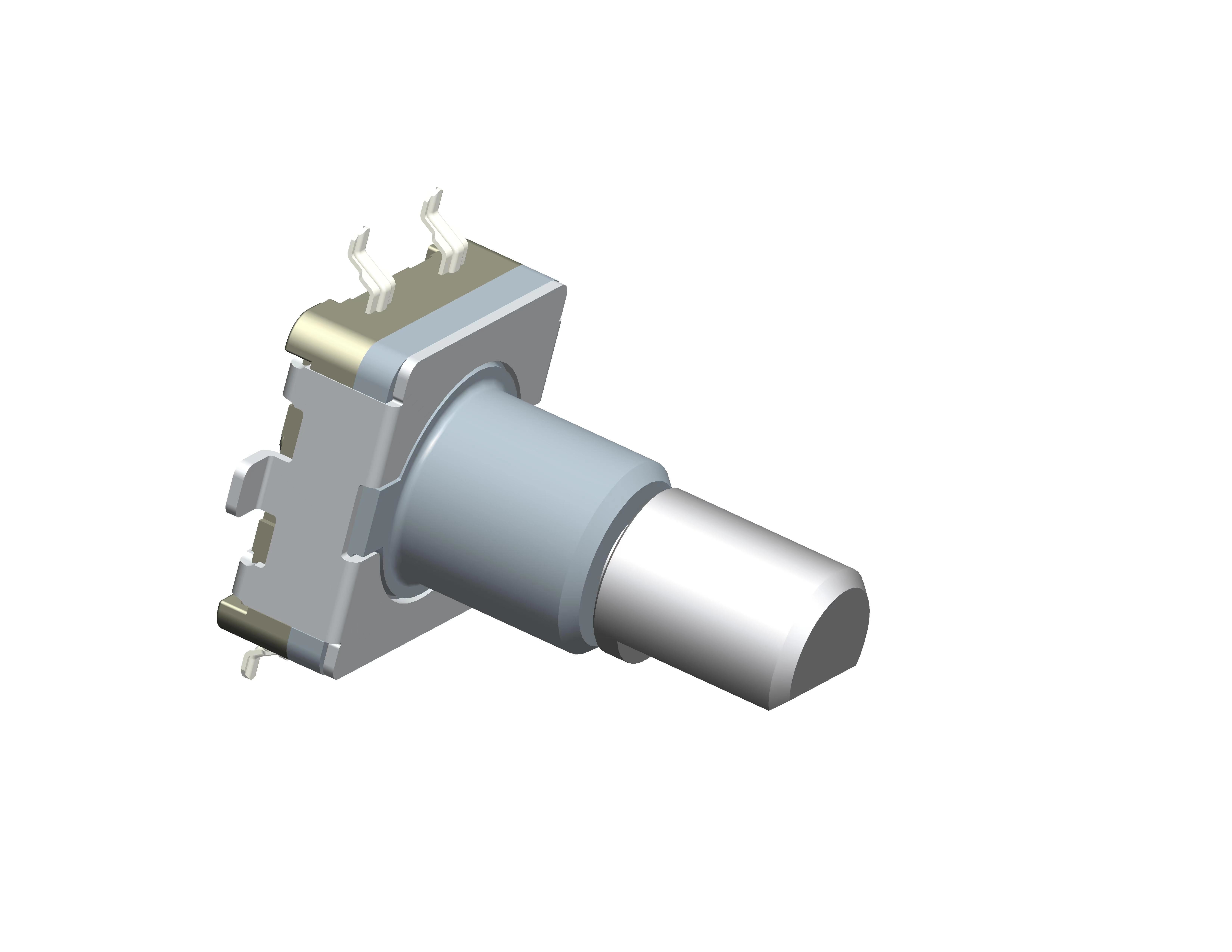

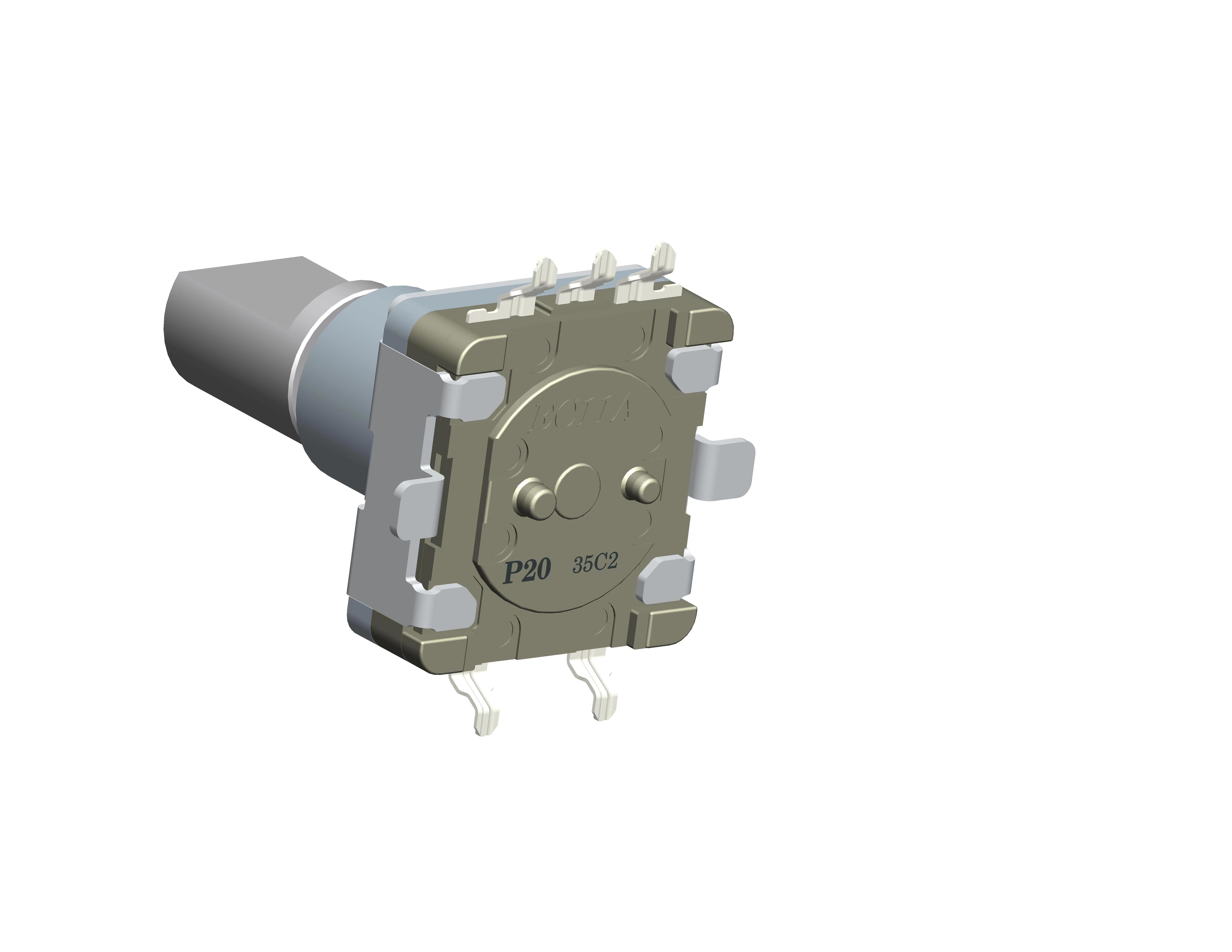

20 Pulses Rotary Encoder Switch 10mA 5V DC EC11 Incremental Encoder for household appliances
Incremental encoders unlike variable resistors/potentiometers, they have unlimited travel in any direction, and since they produce digital "gray codes ", you can extend their readings to any range you like. Both directions make them available to increase or decrease values in variables or navigation menus. Finally, many of these rotary encoders come with a central button that can be used to select menu items, reset the counter, or do anything else you can think of that might fit a momentary button. Continuous rotary encoder switch with adjustment mode 360 degree rotation.
| Features: |
| Actuator configuration |
Flat |
| Number of detent |
30 |
| Number of pulse |
20 |
| Push-on switch |
With |
| Travel of push-on switch |
0.5mm |
| Dimensions |
11mm size |
| Operating temperature range |
-40℃ ～ +85℃ |
| Electrical performance |
| Ratings |
10mA 5V DC |
| Output signal |
Two phase A and B |
| Max./min. operating current (Resistive load) |
10mA/1mA |
| Insulation resistance |
100MΩ min. 250V DC |
| Voltage proof |
300V AC for 1 minute or 360V AC for 2s |
| Mechanical performance |
| Detent torque |
10±7mN・m |
| Push-pull strength |
100N |
| Durability |
| Operating life |
15,000 cycles |
| Contact arrangement |
Single pole single throw (Push-on) |
| Travel |
0.5±0.5mm |
| Operating force |
4±2N |
| Ratings |
0.1A 5V DC (500µA 5V DC min. ratings) |
| Contact resistance (Initial performance/After lifetime) |
100mΩ max./200mΩ max. |
| Operating life |
20,000 times |
Features
1. Small size encoder with push-on switch;
2. Available in many different variants.
3. Push switch with 0.5mm travel
4. Shaft length and shape can be adjusted.
5. A variety of mounting methods for choice
Application
It is mainly suitable for automotive electronics, household appliances. Household appliances like ovens and washing machines, audio products, timers and other related electronic devices; Also can be used for data input, like a car CD player, volume and on/off control or data selection via LED or LCD display; Ideal for PIC or ATMEL microcontrollers.
Our Advantage
1. 4 automation production lines, more than 100 experienced workers for higher precision products.
2. 10+ dedicated and experienced engineers and designers in R&D department.
3. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
Our Services
1. Offer 1 year warranty
2. OEM/ODM service to meet all your needs
3. within 24 hours to reply your inquiries
4. Strong R&D team for technical support
FAQ
• Q: Can I get sample from you?
• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.
• Q: Do you accept customization?
• A: Yes, customization is acceptable, please contact our sales staffs for consult.
• Q: Can you provide help for technical issues?
• A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.
