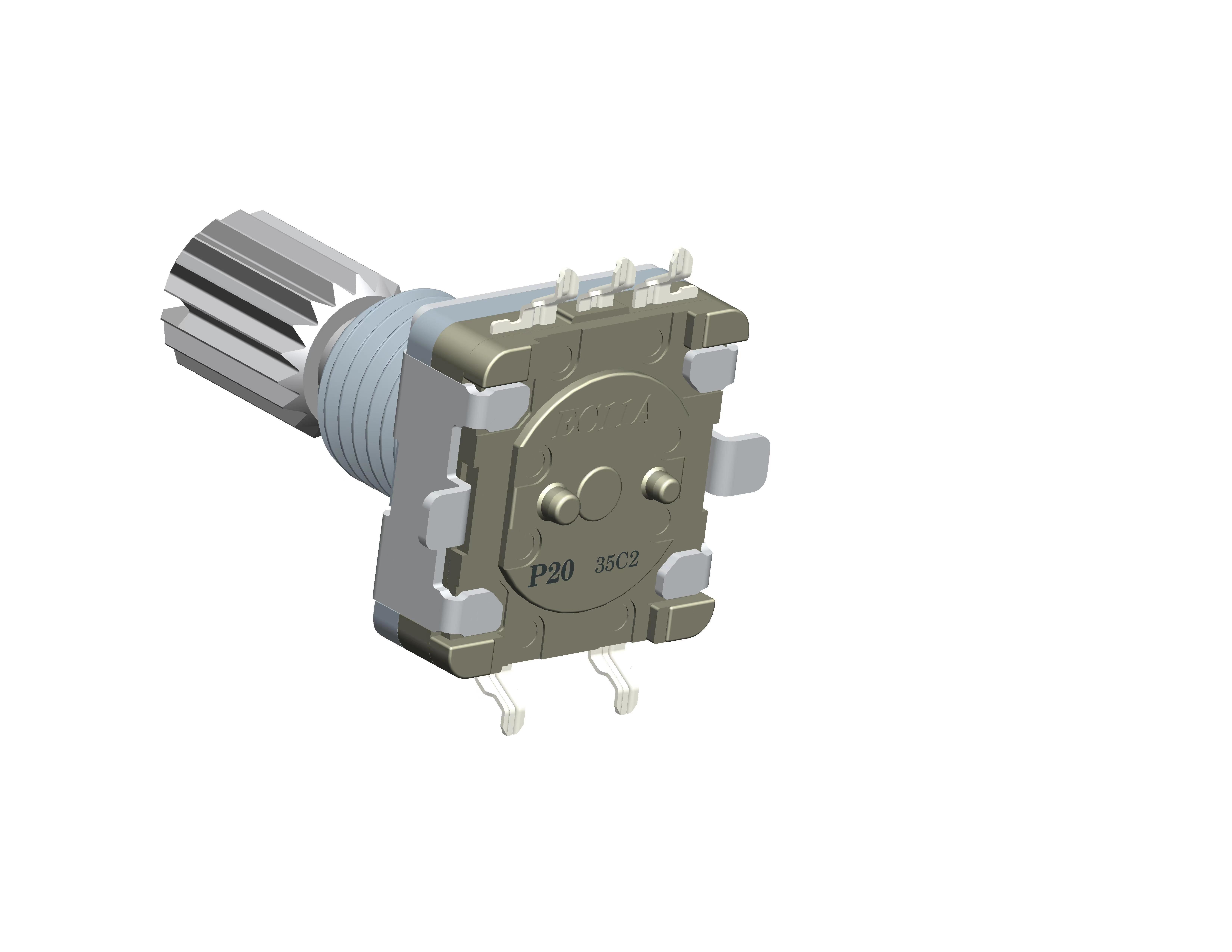

EC11 Incremental Rotary Encoder 10mA 5V DC Metal Shaft 20mm for Automotive electronics
Description
Rotary encoders are used for Frequency modulation, volume adjustment, temperature adjustment, function selection, etc.Rotary Encoders are sensors that detect position and speed by converting rotational mechanical displacements into electrical signals and processing those signals.
| Features: |
| Control part orientation |
Horizontal |
| Actuator configuration |
Flat |
| Actuator length |
20mm |
| Number of detent |
30 |
| Number of pulse |
15 |
| Push-on switch |
With |
| Travel of push-on switch |
1.5mm |
| Dimensions |
11mm size |
| Operating temperature range |
-40℃ ～ +85℃ |
| Electrical performance |
| Ratings |
10mA 5V DC |
| Output signal |
Two phase A and B |
| Max./min. operating current (Resistive load) |
10mA/1mA |
| Insulation resistance |
100MΩ min. 250V DC |
| Voltage proof |
300V AC for 1 minute or 360V AC for 2s |
| Mechanical performance |
| Detent torque |
10±7mN・m |
| Push-pull strength |
100N |
| Durability |
| Operating life |
15,000 cycles |
| Push-on switch specifications |
|
| Contact arrangement |
Single pole single throw (Push-on) |
| Travel |
0.5±0.5mm |
| Operating force |
4±2N |
| Ratings |
0.1A 5V DC (500µA 5V DC min. ratings) |
| Contact resistance (Initial performance/After lifetime) |
100mΩ max./200mΩ max. |
| Operating life |
20,000 times |
Features
1. Sealed design encoder with highly reliable performance.
2. Available in many different variants.
3. Push switch with 0.5mm travel or 1.5mm travel.
4. Shaft length and shape can be adjusted.
Application
It is mainly suitable for automotive electronics, household appliances. Household appliances like ovens and washing machines, audio products, timers and other related electronic devices; Mainly used to adjust the volume, temperature, frequency and function switching.
