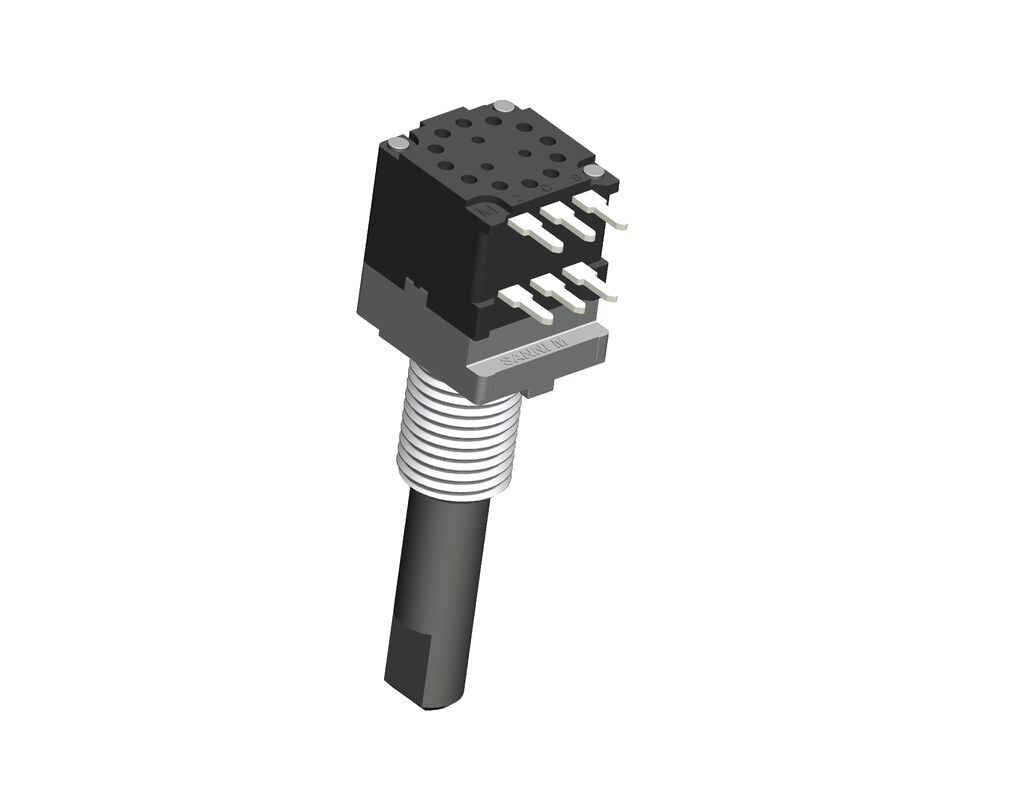

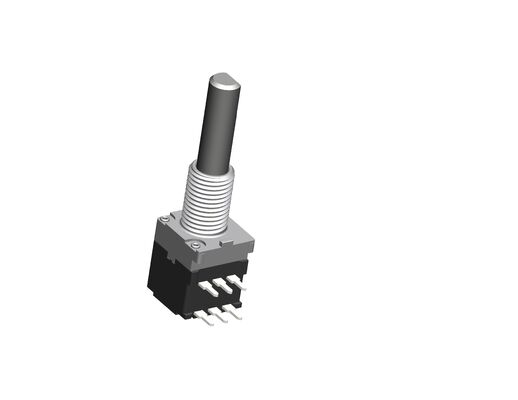

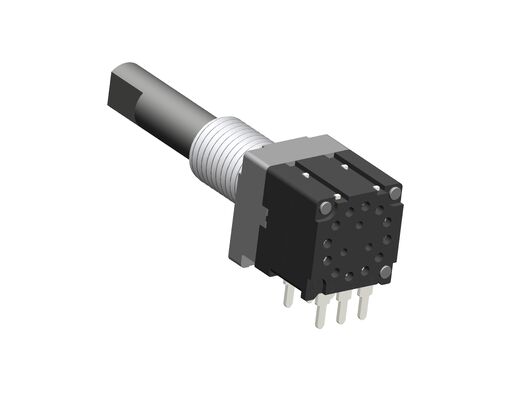

RE104 Incremental Rotary Encoder 10mA 5V DC Metal Shaft 25mm for Music Instrument
Description
An incremental encoder will immediately report changes in position, which is an essential capability in some applications. However, it does not report or keep track of absolute position. Which is a type of position sensor which is used for determining the angular position of a rotating shaft. It generates an electrical signal, either analog or digital, according to the rotational movement.
| Features: |
| Control part orientation |
Horizontal |
| Actuator configuration |
Flat |
| Actuator length |
25mm |
| Number of detent |
30 |
| Number of pulse |
15 |
| Push-on switch |
With |
| Travel of push-on switch |
no switch |
| Dimensions |
10mm size |
| Operating temperature range |
-40℃ ～ +85℃ |
| Electrical performance |
| Ratings |
10mA 5V DC |
| Output signal |
Two phase A and B |
| Max./min. operating current (Resistive load) |
10mA/1mA |
| Insulation resistance |
100MΩ min. 250V DC |
| Voltage proof |
300V AC for 1 minute or 360V AC for 2s |
| Mechanical performance |
| Detent torque |
10±7mN・m |
| Push-pull strength |
100N |
| Durability |
| Operating life |
15,000 cycles |
| Push-on switch specifications |
|
| Contact arrangement |
Single pole single throw (Push-on) |
| Travel |
0.5±0.5mm |
| Operating force |
4±2N |
| Ratings |
0.1A 5V DC (500µA 5V DC min. ratings) |
| Contact resistance (Initial performance/After lifetime) |
100mΩ max./200mΩ max. |
| Operating life |
20,000 times |
Features
1. Sealed design encoder with highly reliable performance.
2. Available in many different variants.
3. Push switch with 0.5mm travel or 1.5mm travel.
4. Shaft length and shape can be adjusted.
5. A variety of mounting methods for choice
Application
Rotary encoder is mainly suitable for automotive electronics, household appliances. Household appliances like ovens and washing machines, audio products, timers and other related electronic devices;
