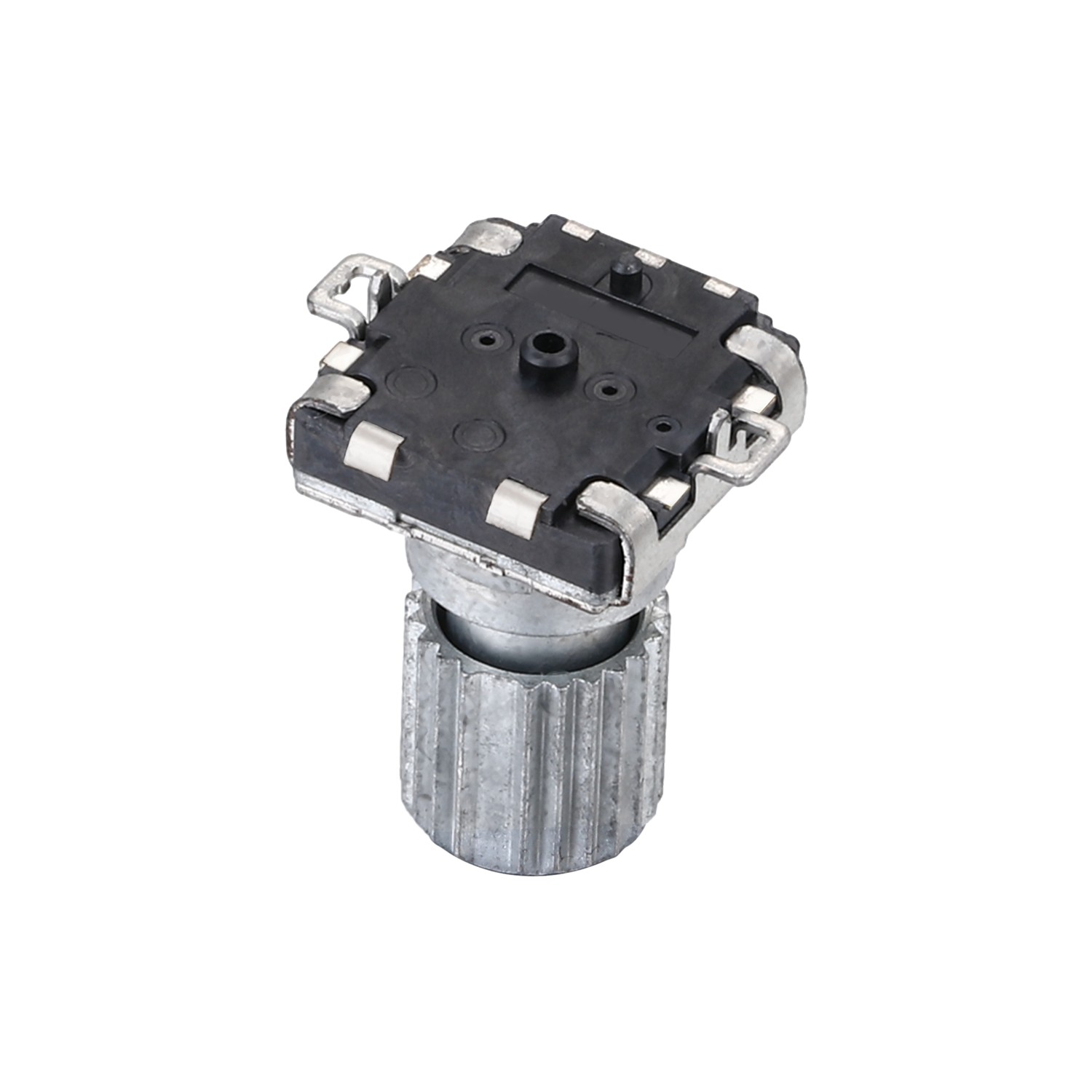

EC11 Encoder Metal Shaft Rotary Encoder Incremental Rotary Encoder For Audio Amplifier
Description
The EC11 small size 11 mm series incremental rotary encoder for car audio typically is processed elsewhere into information such as position, speed and distance. There are 15 pulses, 30 detents. Mainly used to adjust the volume, temperature, frequency and function switching. An incremental encoder is a linear or rotary electromechanical device that has two output signals, A and B, which issue pulses when the device is moved. Together, the A and B signals indicate both the occurrence of and direction of movementThe shaft can be customzied by different requirments.
Specification
| Switch Performance |
| Circuit number: |
SPST |
| Rated power: |
1A 16V DC |
| Switch Torque: |
500gf.cm max |
| Switch Angle: |
40º max |
| Operating life without load: |
30,000 cycles 100mΩ max |
| Operating life with load: |
30,000 cycles 200mΩ max |
| Initial contact resistance: |
100mΩ max |
| Insulation resistance : |
100mΩ min.250V DC |
| Voltage proof: |
300V AC for 1 minute |
| Mechanical characteristics |
| Total rotational angel: |
300°±5º |
| Detent: |
16 |
| Rotational torque: |
150~350gf.cm |
| Rotational stopper strength : |
3Kgf.max/Alu; 3.5kgf max/Brass; 4.0kgf max/Stainless steel |
| Shaft push-pull strength: |
8Kgf.max |
| Rotational torque: |
20~200f.cm CC: click torque: 60~400gf.cm |
| Shaft wobble: |
Max:0.6*L/20mm P-P max |
| Vibration: |
10 to 50 to 10 Hz/min. the amplitude is 1.5mm for all the frequencies. |
| Electrical Performance |
| Number of pulse/detent |
16/16 |
| Features: |
with push switch/rotary switch |
| Insulation resistance : |
100mΩ min.250V DC |
| Durability |
| Operating life without load: |
20,000 cycles 100mΩ max |
| Environmental performance |
| Cold: |
-40ºC±2ºC for 96h |
| Dry heat: |
85ºC±2ºC for 96h |
| Damp heat: |
40±2ºC, 90 to 95%RH for 96H |
Features
1. A variety of mounting methods for choice.
2. Push switch with 0.5mm travel
3. Shaft length and shape can be customized.
4. Double shaft design
Our Advantage
1. 4 automation production lines, more than 100 experienced workers for higher precision products.
2. 10+ dedicated and experienced engineers and designers in R&D department.
3. ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
4. Professional Testing instruments and team to ensure product quality.
