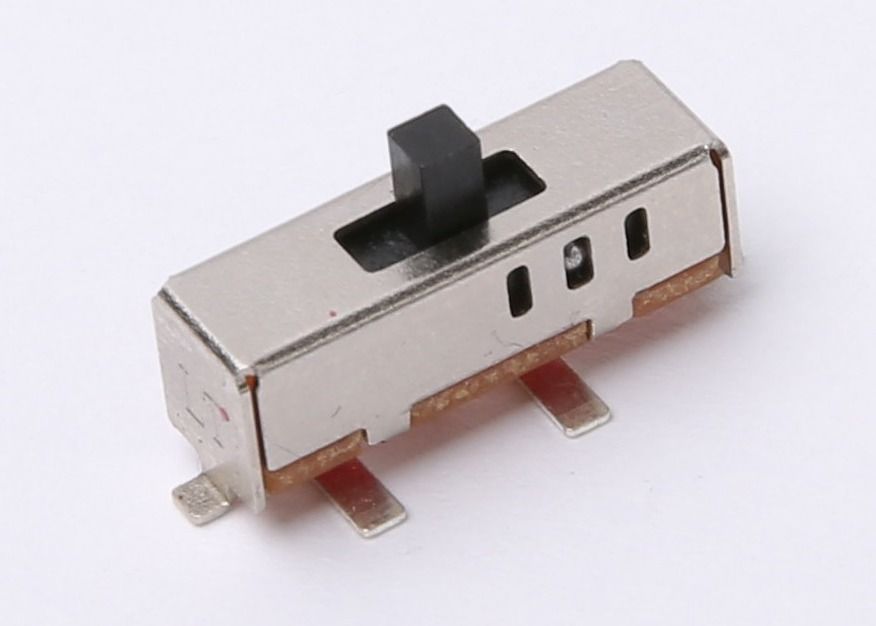

SMD PCB Soldering SPDT Slide Switch 1 Pole 3 Position SS13D27

SS13D27 SPDT Slide Switch SMD PCB Soldering Type

Product Description

SS Series Mini slide switch for DC application,SMD or through hole terminals1P2T, 1P4T, 2P2T & 2P3T functions.

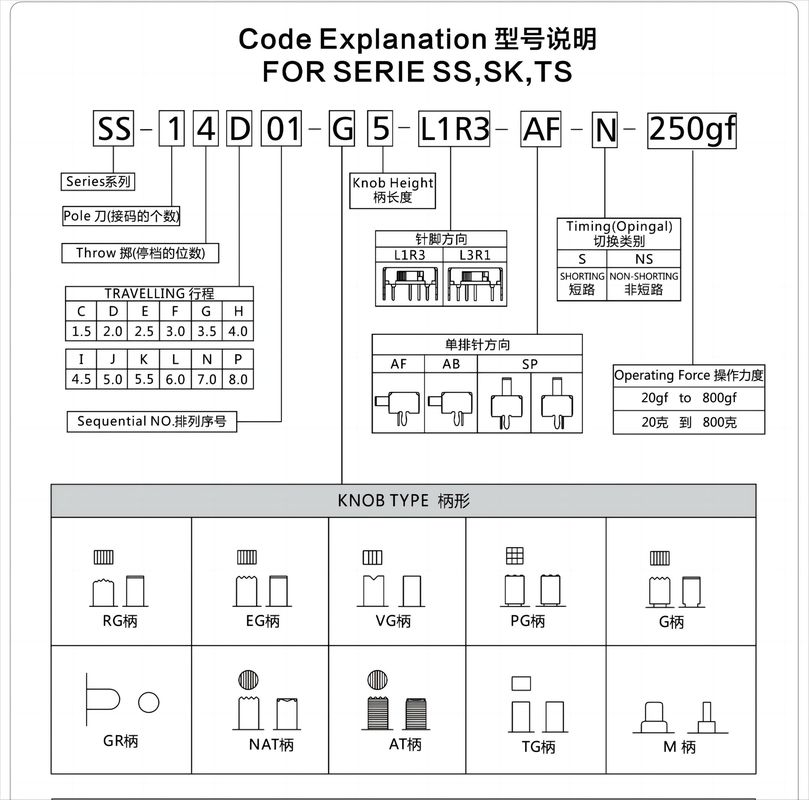

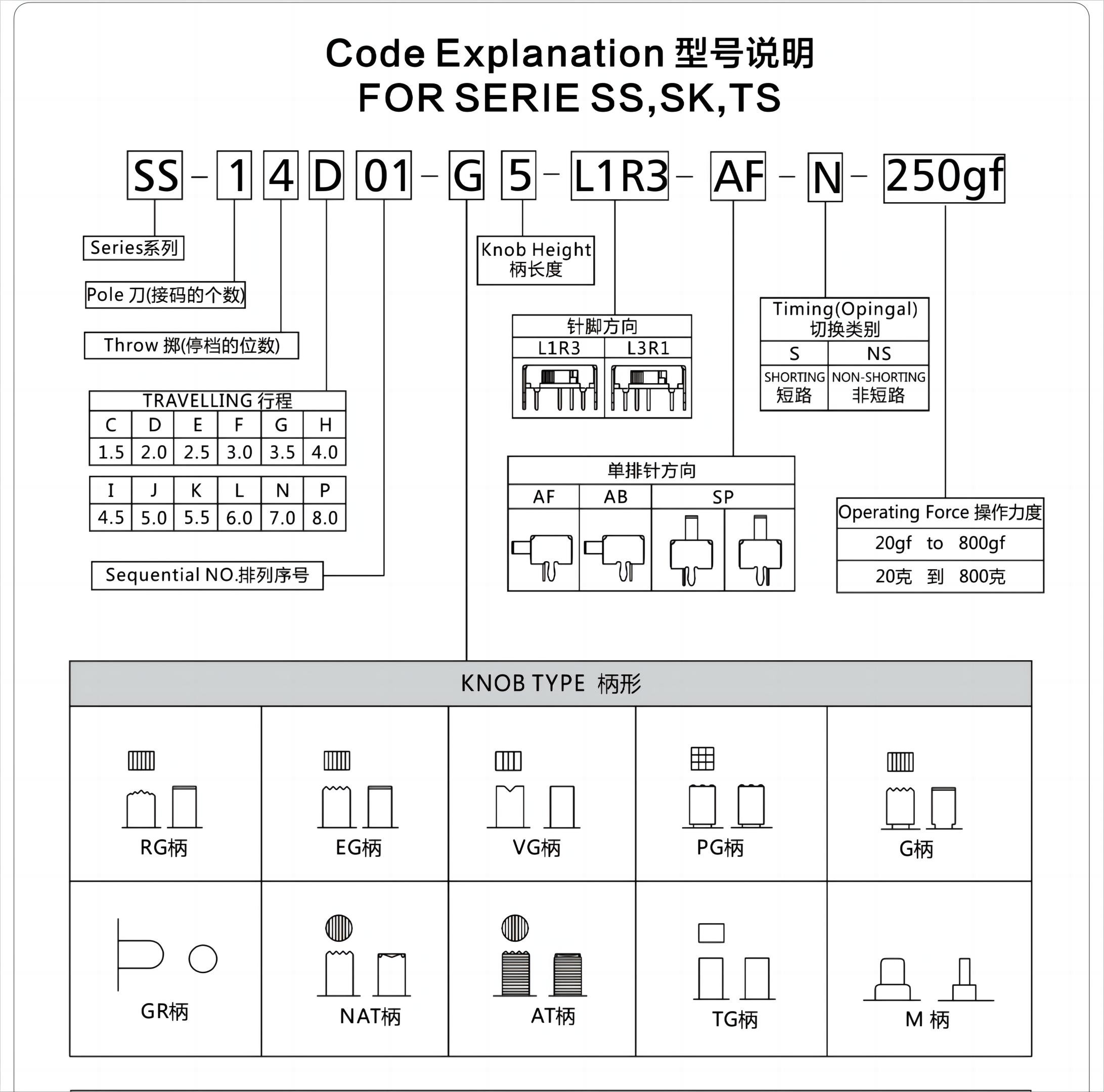

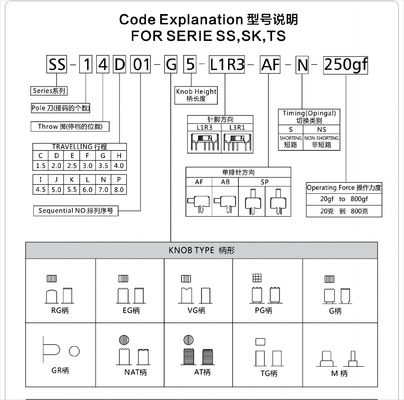

How to order:

Features:

RoHS Complaint

Mini Type

SMD Soldering

Smooth Slide

Clear Click Sound

What is Slide Switch

A slide switch is an electromechanical device used to control the flow of current in a circuit path. The slide switch use a slider that moves (slides) from the open (off) position to the closed (on) position.The series of devices are driven by sliding mechanical switches. These characteristics include circuit, contact timing, switching function, current rating, voltage rating (AC or DC), and actuator type.

Application of Slide Switch

Sliding switches are most suitable for controlling current in small projects. Slide switches come in many terminal types, including feeders, leads, welded terminals, screw terminals, quick-connect or blade terminals, surface mount technology, and panel mount switches.

Material and Finish Spec:

Spring Plate: Copper

Terminal:Brass with Ag plating

Terminal Base: Phenol Resin Yellow

Contact Clip: Copper with Ag Plating

Knob: PA

Frame: SPCC Zinc Plating

Characteristics:
