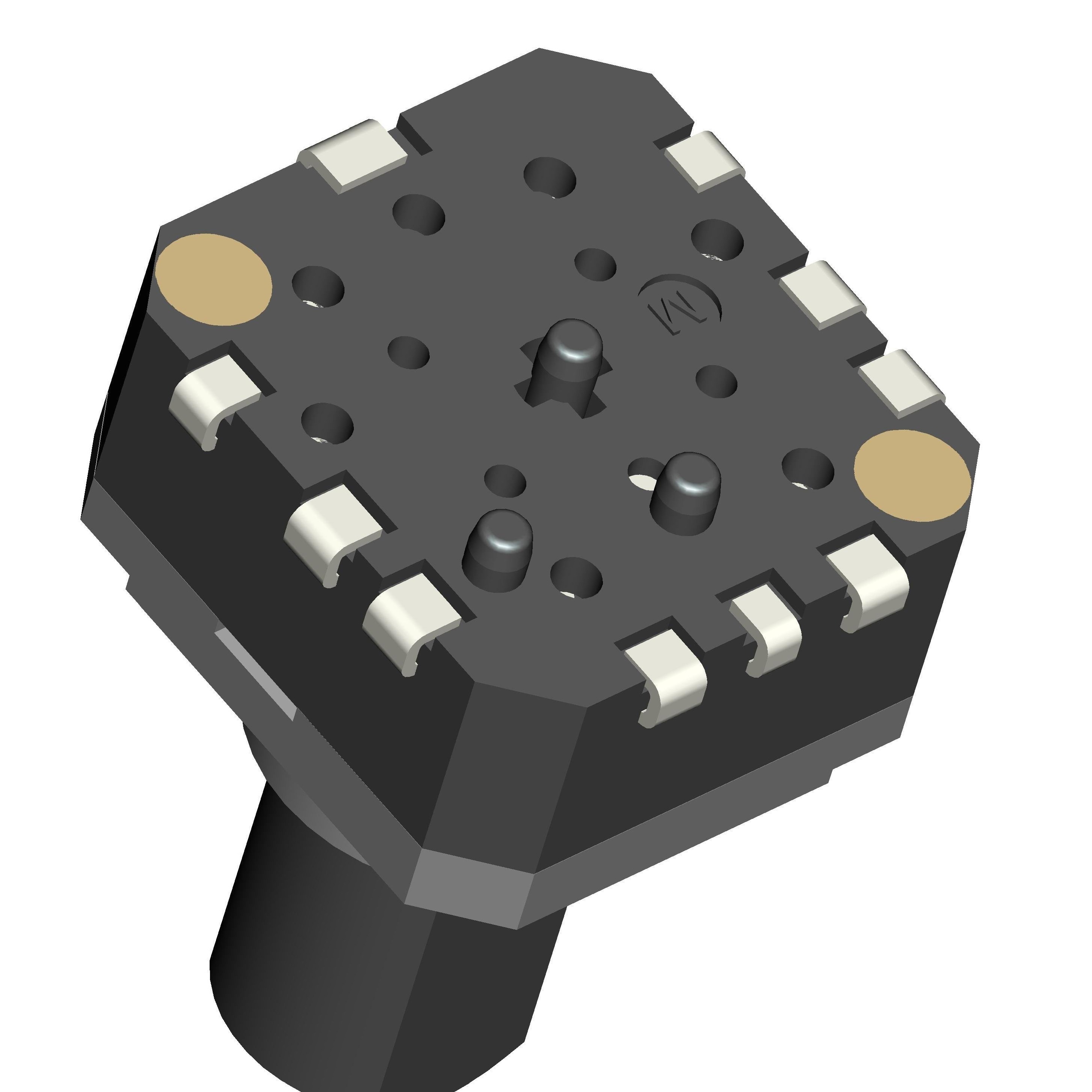

Insulated Shaft Digital Incremental Encoder , 6mm Mini Rotary Encoder With Push Switch

Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RE6010M
Minimum Order Quantity: 2000PCS
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Shaft Material: Metal Transport Package: Carton Boxes
Specification: 10MM Trademark: SANNI
Origin: Dongguan Supply Ability: 10000PCS/Day
Type: Rotary Encoder Working Principle: Incremental
High Light:

Insulated Shaft Digital Incremental Encoder

,

Mini Digital Incremental Encoder

,

6mm Mini Rotary Encoder

6mm Mini Sealed Insualted Shaft Rotary Encoder with Push Switch




Description



The rotating incremental encoder outputs the pulse when rotating, and knows its position through the counting device. When the encoder is not moving or the power is off, it remembers the position by relying on the internal memory of the counting device.

In this way, when the power failure, the encoder can not have any movement, when the call is working, the encoder output pulse process, there can be no interference and loss of pulse, otherwise, the counting device memory of the zero will be offset, and the amount of offset is not known, only after the wrong production results can be known





Specification



Switch Performance
Circuit number: PUSH
Rated power: 0.1A 5V DC
Switch Torque: 500± 200gf.cm max
Switch Angle: 0.5± 0.3
Operating life without load: 100,000 cycles 100mΩ max
Operating life with load: 100,000 cycles 200mΩ max
Initial contact resistance: 100mΩ max
Insulation resistance : 100mΩ min.250V DC
Voltage proof: 300V AC for 1 minute
Mechanical characteristics
Stopper strength 3kgf.max
Detent: 20
Rotational torque: 20~200gf.cm
Rotational stopper strength : 3Kgf.max/Alu; 3.5kgf max/Brass; 4.0kgf max/Stainless steel
push-pull strength: 8Kgf.max
Vibration: 10 to 50 to 10 Hz/min. the amplitude is 1.5mm for all the frequencies.
Electrical Performance
Number of pulse/detent 10/20
Features: with push switch/rotary switch
Insulation resistance : 100mΩ min.250V DC
Voltage proof: 300V AC for 1 minute
Center-taps: with
Environmental performance
Cold: -40ºC±2ºC for 96h
Dry heat: 85ºC±2ºC for 96h
Damp heat: 40±2ºC, 90 to 95%RH for 96H





Features



1. Sealed design encoder with highly reliable performance.

2. Available in many different variants.

3. Push switch with 0.5mm travel or 1.5mm travel.

4. Shaft length and shape can be adjusted.

5. A variety of mounting methods for choice

6. ROHS Compliant

7. Small Volume





Application


Incremental encoder is mainly used to measure speed, acceleration, rotation direction, Angle and so on. Widely used in walking machinery, CNC machine tools, elevator, servo motor, flow meter, textile machinery, metallurgical machinery, injection machinery, printing and packaging machinery, automatic instruments and other industrial automation measurement and control field.

Heavy Duty: demanding environment with a high probability of contaminants and moisture, higher temperature, shock, and vibration requirements as seen in pulp, paper, steel, and wood mills.

Industrial Duty: general factory operating environment which requires standard IP ratings, moderate shock, vibration, and temperature specs as seen in food and beverage, textile, generally factory automation plants.

Light Duty/Servo: controlled environment with high accuracy and temperature requirements such as robotics, electronics, and semiconductors.





Our Advantage



1. 4 automation production lines, more than 100 experienced workers for higher precision products.

2. 10+ dedicated and experienced engineers and designers in R&D department.

3. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.

4. Professional Testing instruments and team to ensure product quality.





Our Services



1. Offer 1 year warranty

2. OEM/ODM service to meet all your needs

3. within 24 hours to reply your inquiries

4. Strong R&D team for technical support

5. Offer free sample for test





FAQ



• Q: Can I get sample from you?

• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.

• Q: Do you accept customization?

• A: Yes, customization is acceptable, please contact our sales staffs for consult.

• Q: Can you provide help for technical issues?

• A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.








6mm Re6010m Mini Sealed Insualted Shaft Rotary Encoder with Push Switch6mm Re6010m Mini Sealed Insualted Shaft Rotary Encoder with Push Switch6mm Re6010m Mini Sealed Insualted Shaft Rotary Encoder with Push Switch6mm Re6010m Mini Sealed Insualted Shaft Rotary Encoder with Push Switch6mm Re6010m Mini Sealed Insualted Shaft Rotary Encoder with Push Switch
