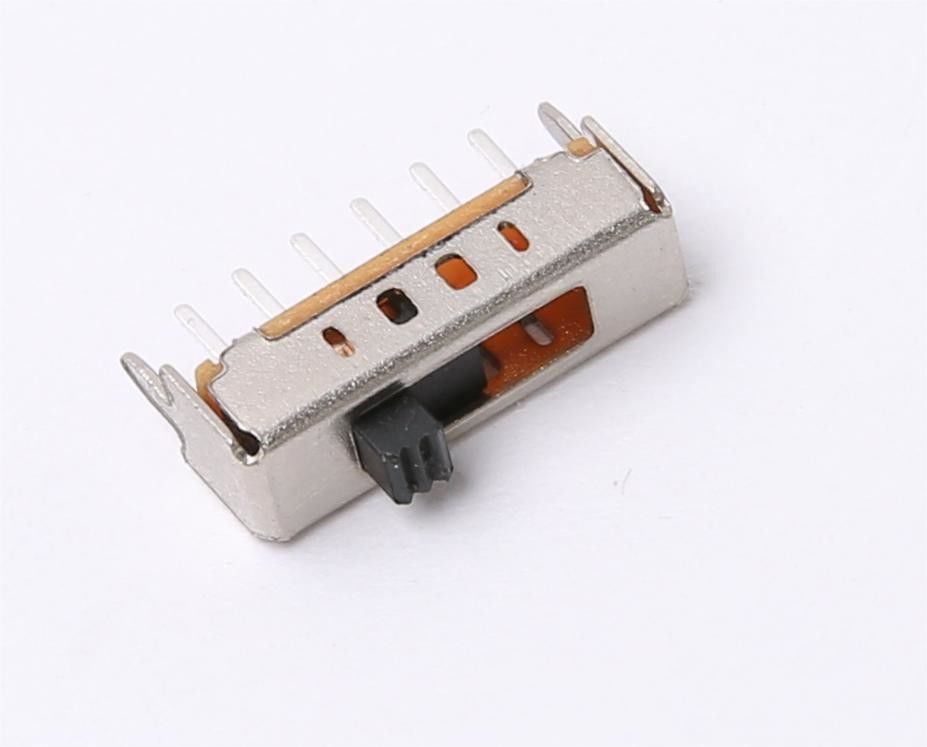

SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application

SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application
SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: SS14D01
Minimum Order Quantity: 2000pcs
Price: USD0.1~USD0.15 per pc
Packaging Details: 2000pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 100000pcs per Month
Contact Now
Housing Material: SPCC Terminal Material: Copper
Terminal Finish: Silver Plating Travel Life: 10000 Cycles At 00MΩ Max
Position: 1Pole 4 Position Curcuit: SPDT
Highlight:

SPDT Slide Switch 1 Pole 4 Position

,

DC SPDT Slide Switch 1 Pole

,

SS14D01 slide switch 4 position

SS14D01 SPDT Slide Switch PCB DIP Soldering Type



Product Description





SS Series Mini slide switch for DC application,SMD or through hole terminals1P2T, ,1P3T,1P4T, 2P2T & 2P3T functions.



How to order:



SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 0





Features:



RoHS Complaint

Mini Type

SMD Soldering

Smooth Slide

Clear Click Sound



Application of Slide Switch



Sliding switches are most suitable for controlling current in small projects. Slide switches come in many terminal types, including feeders, leads, welded terminals, screw terminals, quick-connect or blade terminals, surface mount technology, and panel mount switches.



SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 1



Material and Finish Spec:



Spring Plate: Copper

Terminal:Brass with Ag plating

Terminal Base: Phenol Resin Yellow

Contact Clip: Copper with Ag Plating

Knob: PA

Frame: SPCC Zinc Plating





Characteristics:





1.Electrical Characteristics
Rating  30V DC 0.3A
Contact Resistance 100mΩ Max
Insulation resistance 100MΩ @ 500V DC
Withstand Voltage AC500V for 1 Minute
2.Mechanical Characteristics
Operating Force 200gt±100gf
Switching Life 10,000 cycles Min., Unloaded 15-18 cycles per min



SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 2

SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 3SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 4SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 5SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 6SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 7SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 8SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 9

SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 10

SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 11SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 12SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application 13
