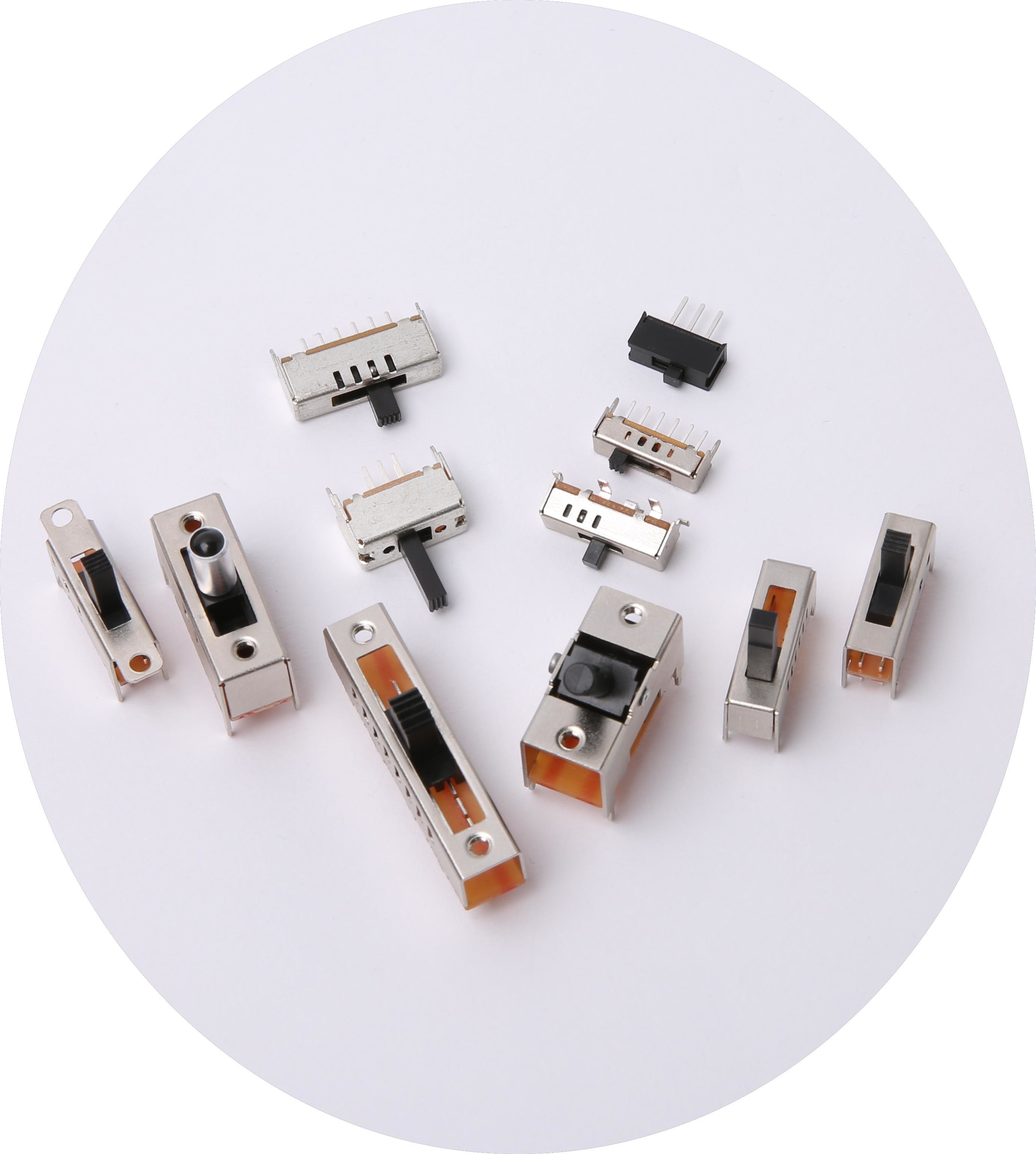

SS18F08 SPDT Slide Switch 1Pole 8 Position PCB DIP Soldering Type
Product Description
SS Series Mini slide switch for DC application,SMD or through hole terminals1P2T, 1P4T,1P6T,1P8T, 2P2T & 2P4T ,2P6Tfunctions.
Material and Finish Spec:
Spring Plate: Natural Copper
Contact Clip: Copper with Silver Plating
Terminal:Brass with Silver Plating
Terminal Base: Phenol Resin
Frame: SPCC Zinc Plating
Knob: PA
How to order:
Features:
RoHS Complaint
Mini Type
PCB DIP Soldering
Smooth Slide
Clear Click Sound
What is Slide Switch
A slide switch is an electromechanical device used to control the flow of current in a circuit path. The slide switch uses a slider that moves (slides) from the open (off) position to the closed (on) position.The series of devices are driven by sliding mechanical switches.
Application of Slide Switch
Sliding switches are most suitable for controlling current in small projects. Slide switches come in many terminal types, including feeders, leads, welded terminals, screw terminals, quick-connect or blade terminals, surface mount technology, and panel mount switches.
Characteristics:
| 1.Electrical Characteristics |
| Rated Power |
0.3A 30 VDC |
| Insulation resistance |
100MΩ @ 500V DC |
| Contact Resistance |
100mΩ Max |
| Withstand Voltage |
500VAC for 1 Minute |
| 2.Mechanical Characteristics |
| Operating Force |
200gf±100gf |
| Switching Life Cycle |
Unloading 15-18 cycles per min,10,000 cycles Min. |
FAQ
Q: Can you do OEM/ODM?
A: Yes, both OEM and ODM services are acceptable and we can also print your logo and make your packaging according to your requirements.
Q: How is your product quality?
A: We always put emphasis on the quality of our product. Our product are 100% tested and inspected before shipment.
Q: Are you a factory or a trading company?
A: We are the manufacturer of foot switch......
Q: How do you ship the goods?
A: The products will be sent to you by optional shipping service, such express, air cargo, sea transportation.
