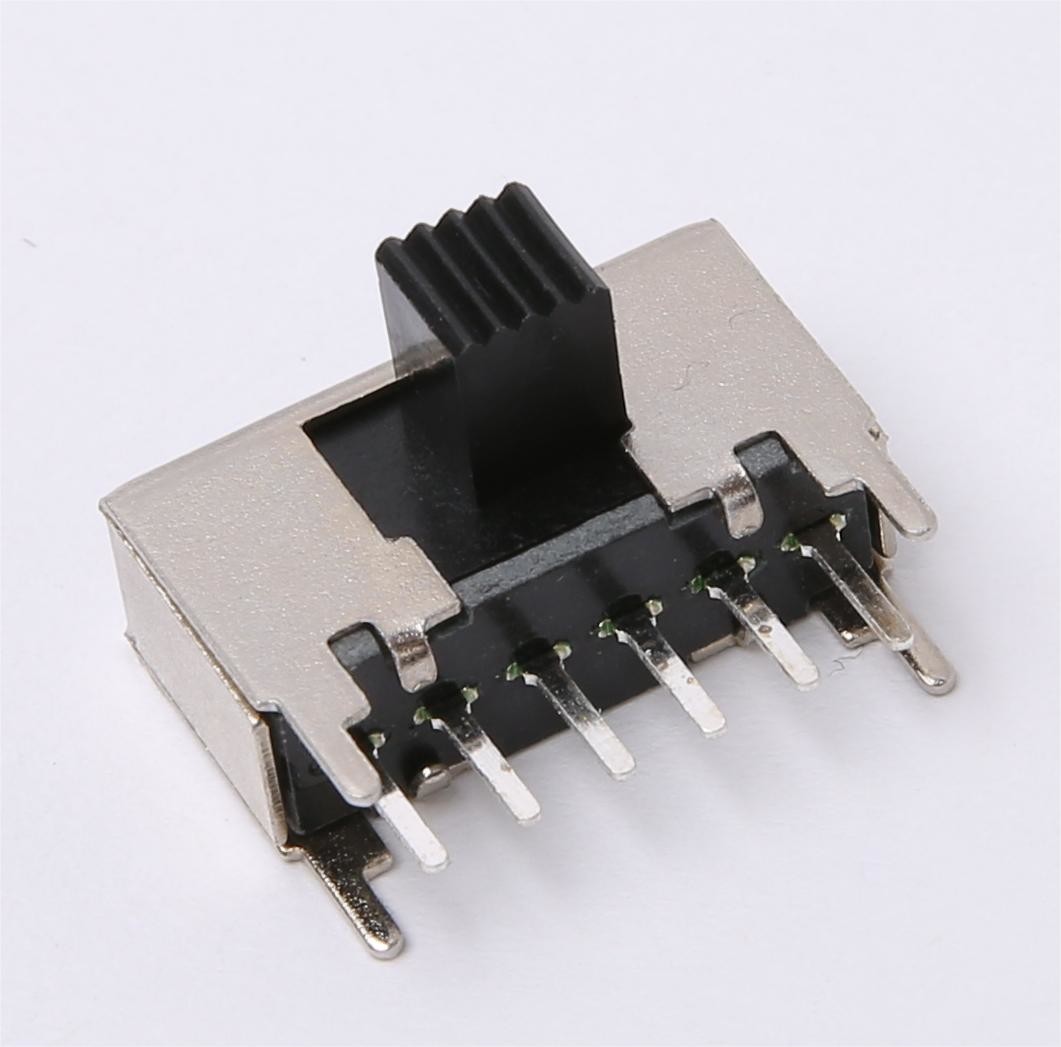

SK22F06 SPDT Slide Switch 2Pole 2 Position Side Slider PCB DIP Soldering Type
Product Description

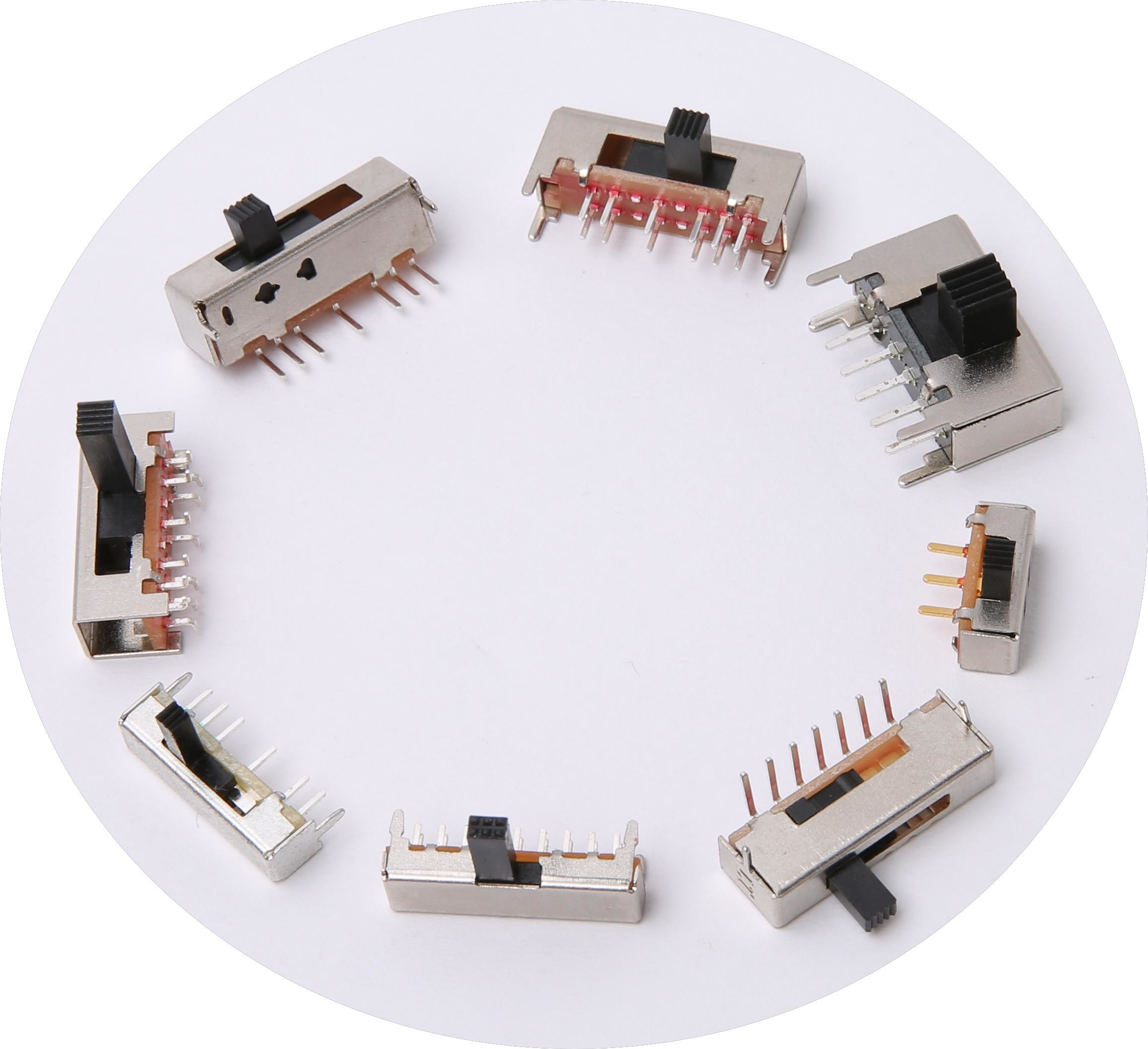

SS Series Mini slide switch for DC application,SMD or through hole terminals1P2T, 1P3T, 2P2T ,2P3T,2P4T functions.
How to Order:
What is Slide Switch
A slide switch is an electromechanical device used to control the flow of current in a circuit path. The slide switch uses a slider that slides from the open (off) position to the closed (on) position.The series of devices are driven by sliding mechanical switches. These characteristics include circuit, contact timing, switching function, voltage rating (AC or DC), current rating, and actuator type.
Material and Finish Spec:
Terminal:Brass with Ag plated
Terminal Base: Phenol Resin Yellow
Spring Plate: Copper natural
Contact Clip: Copper with Ag Plated
Knob: PA
Frame: SPCC Zinc Plated
Features:
Mini Type
DIP Soldering
Smooth Sliding Performance
Clear Click Sound
Complaint with RoHS
Application of Slide Switches
Sliding switches are most suitable for controlling current in small projects. Slide switches come in many terminal types, including feeders, leads, welded terminals, quick-connect, screw terminals or surface mount technology, blade terminals,and panel mount switches.
Product Specifications
| 1.Electrical Specifications |
| Rated Power |
15 VDC,0.3A |
| Insulation resistance |
100MΩ @ 500V DC |
| Contact Resistance |
100mΩ Max |
| Withstand Voltage |
500V AC for 1 Minute |
| 2.Mechanical Specifications |
| Operation Force |
250±100gf |
| Switching Life Cycle |
Unloading 15-18 cycles per minute,10,000 cycles Min. |
