Digital Incremental Encoder dual shaft with push switch 0.5mm Travel EC11D22M-FF-15P
Description

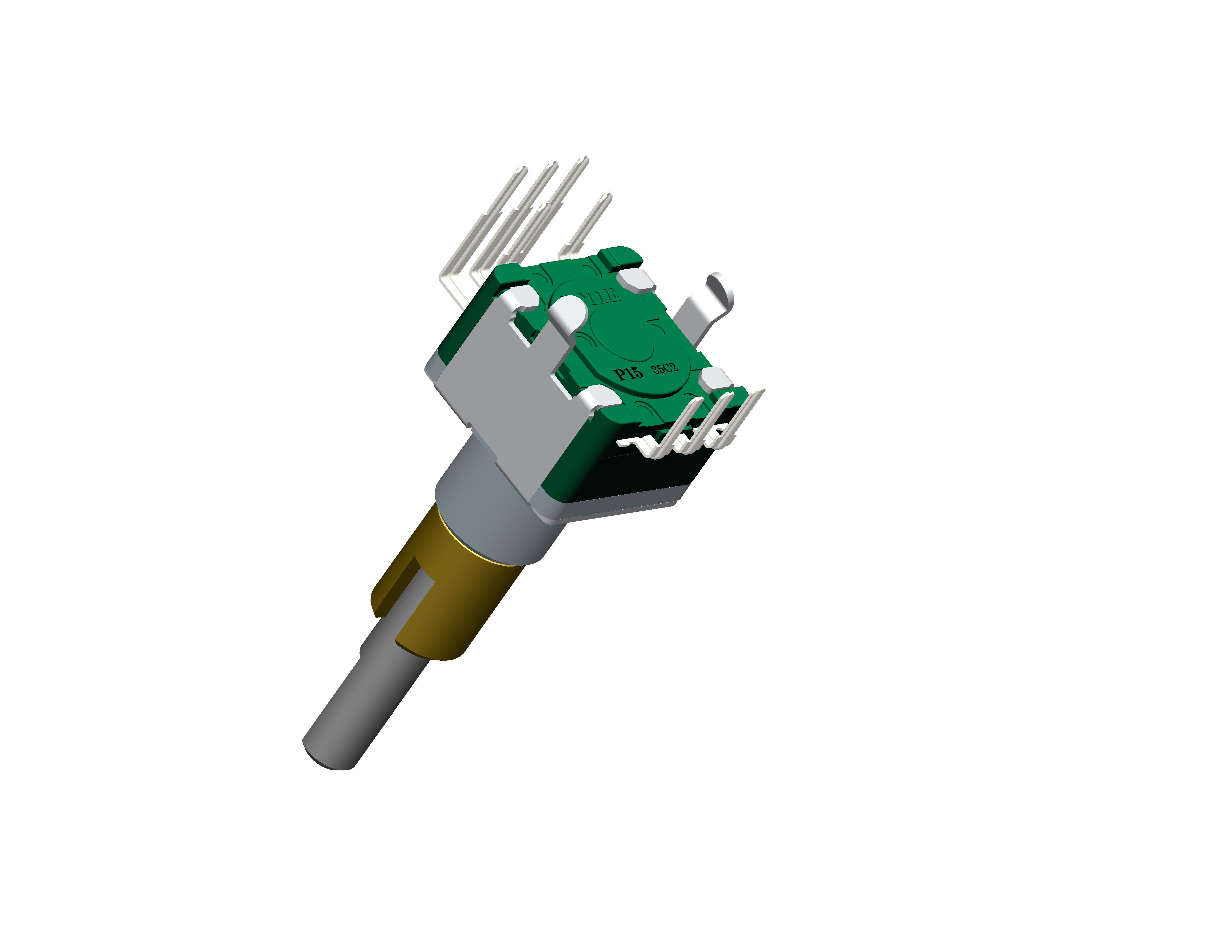

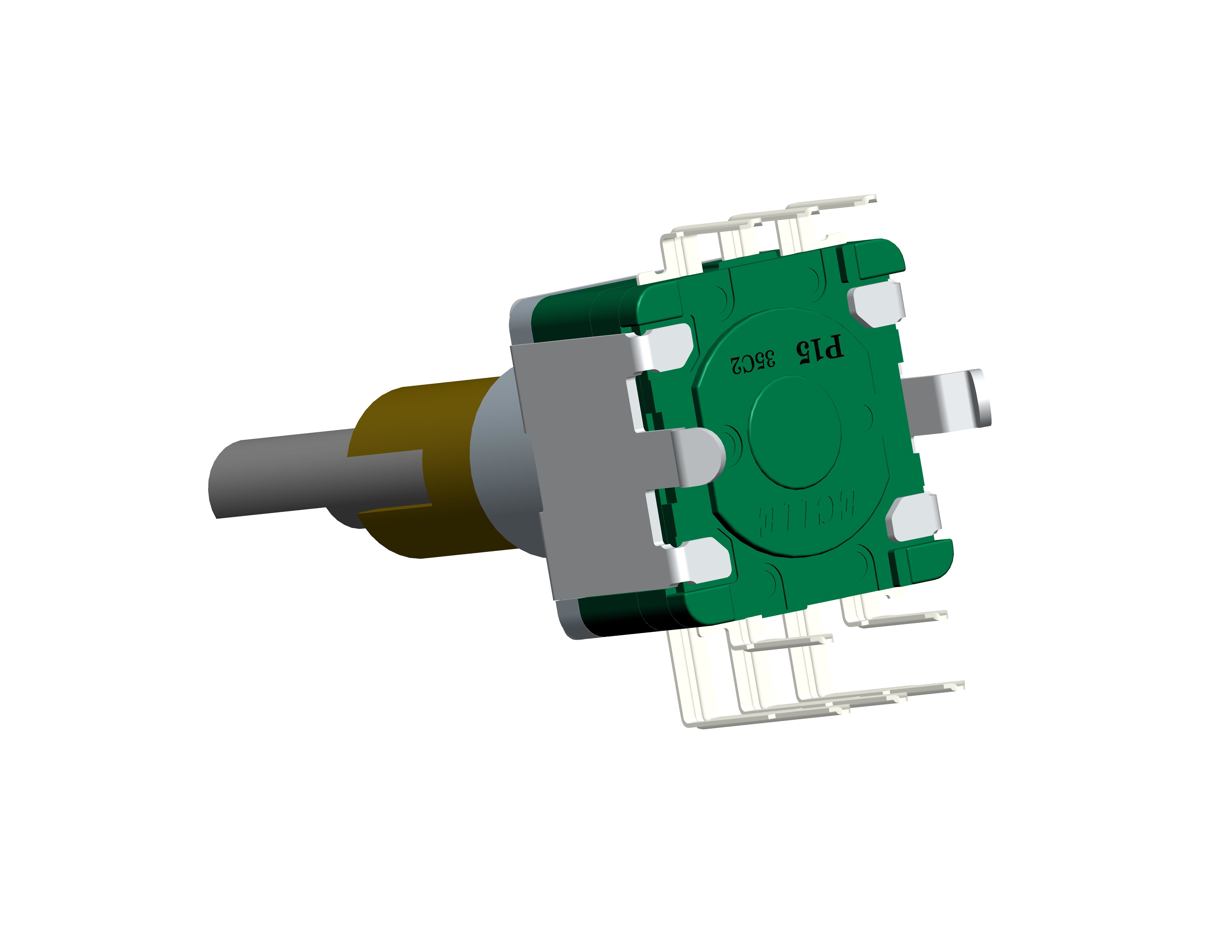

Dual shaft encoder have inner shaft and outer shaft, each shaft controls the 15 pulses encoder independently. The Inner shaft also have a push switch function.
Specification
| Mechanical characteristics |
| Stopper strength |
3kgf.max |
| Rotational torque: |
20~200gf.cm |
| push-pull strength: |
8Kgf.max |
| Rotational stopper strength : |
3Kgf.max/Alu; 3.5kgf max/Brass; 4.0kgf max/Stainless steel |
| Detent: |
30detents |
| Vibration: |
10 to 50 to 10 Hz/min. the amplitude is 1.5mm for all the frequencies. |
| Electrical Performance |
| Number of pulse/detent |
15P, 30detents |
| Insulation resistance : |
100mΩ min.250V DC |
| Voltage proof: |
300V AC for 1 minute |
| Environmental performance |
| Cold: |
-40ºC±2ºC for 96h |
| Dry heat: |
85ºC±2ºC for 96h |
| Damp heat: |
40±2ºC, 90 to 95%RH for 96H |
| Switch Performance |
| Rated power: |
0.1A 5V DC |
| Switch Torque: |
500± 200gf.cm max |
| Switch Travel: |
0.5± 0.3mm |
| Circuit number: |
PUSH switch |
| Voltage proof: |
300V AC for 1 minute |
| Operating life without load: |
100,000 cycles 100mΩ max |
| Operating life with load: |
100,000 cycles 200mΩ max |
| Initial contact resistance: |
100mΩ max |
| Insulation resistance : |
100mΩ min.250V DC |
Features
1.Highly reliable performance sealed design encoder .
2. Push switch with 0.5mm travel ,1.5mm travel switch available.
3. Shaft length and shape type can be adjusted.
4. Vertical mount
5. Compliant with RoHS Directive
6. Small Volume Available
