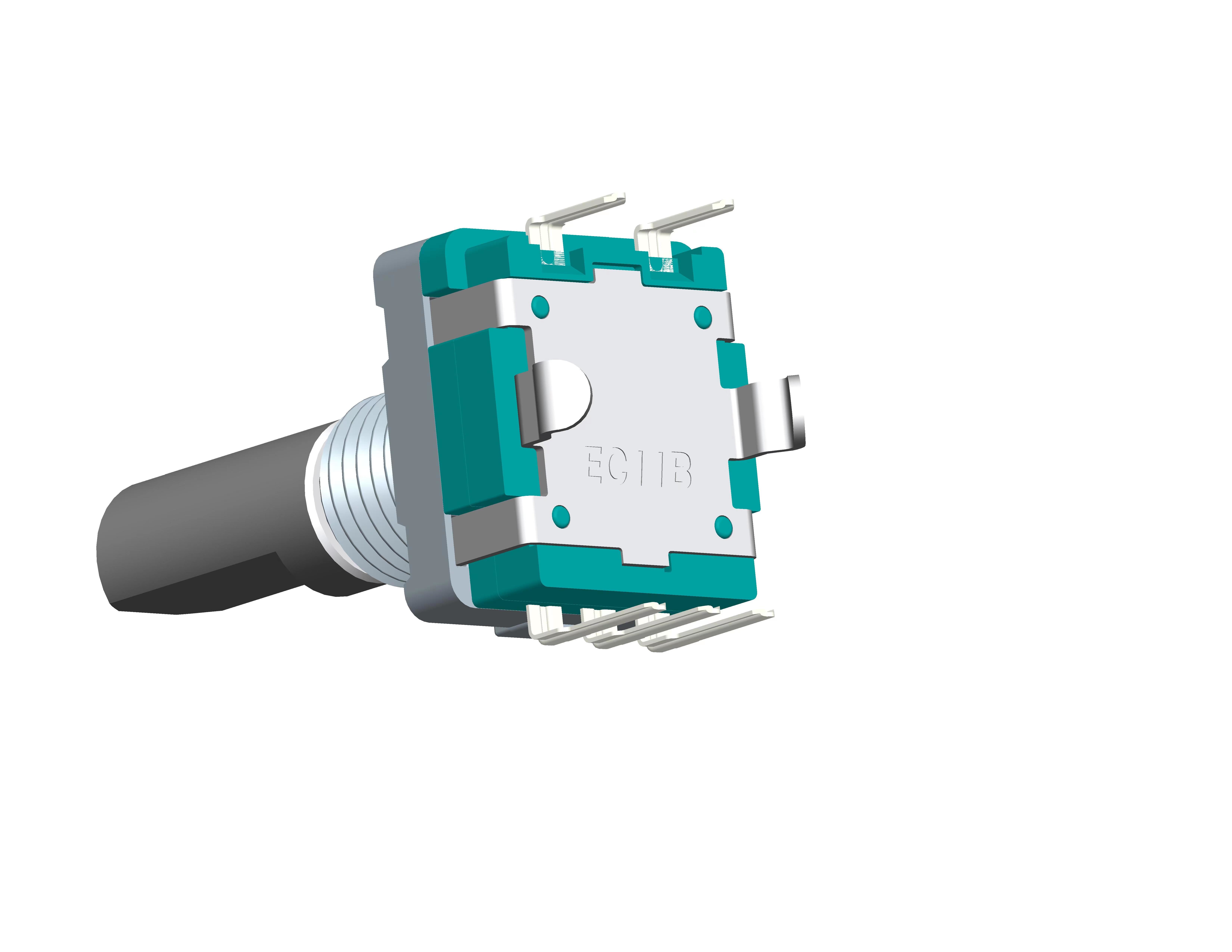

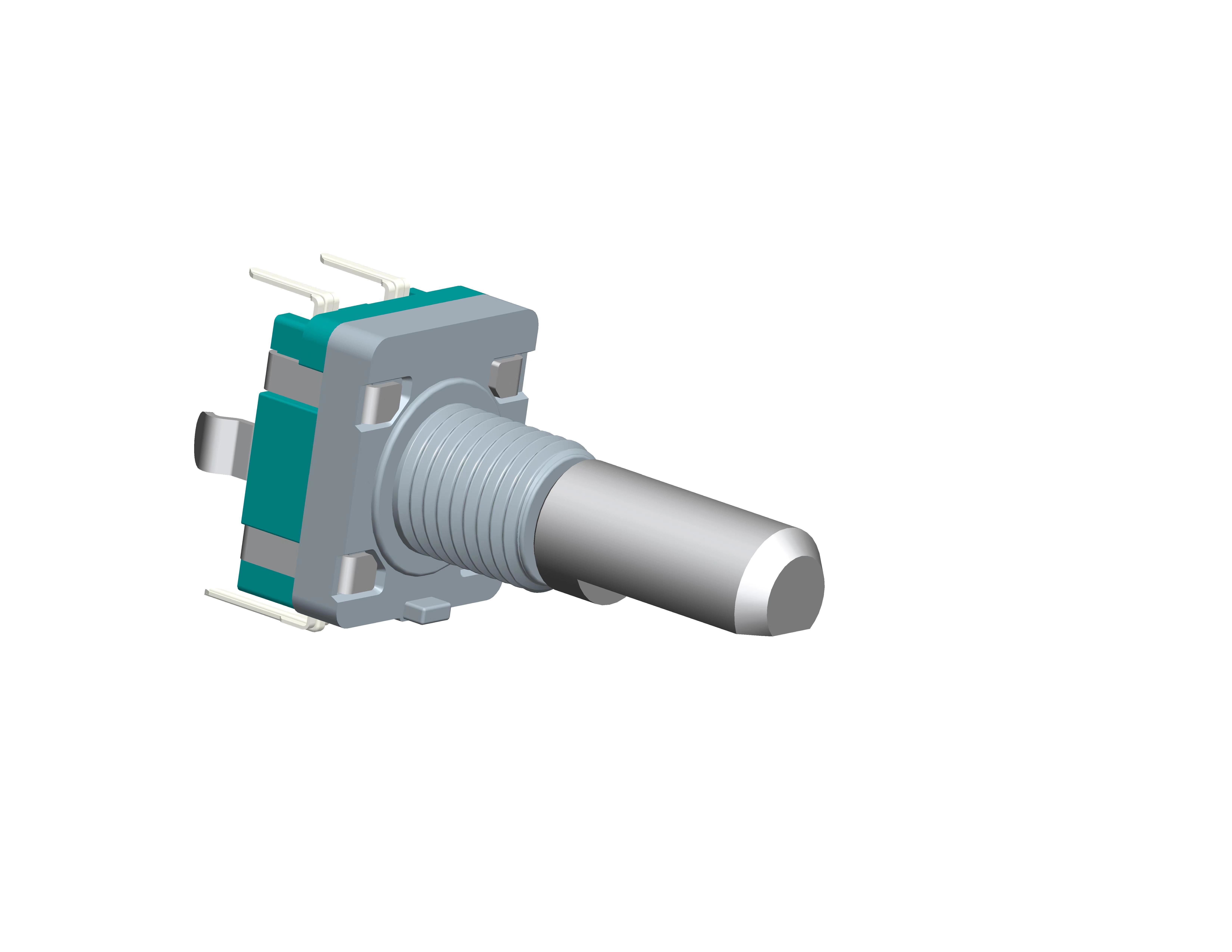

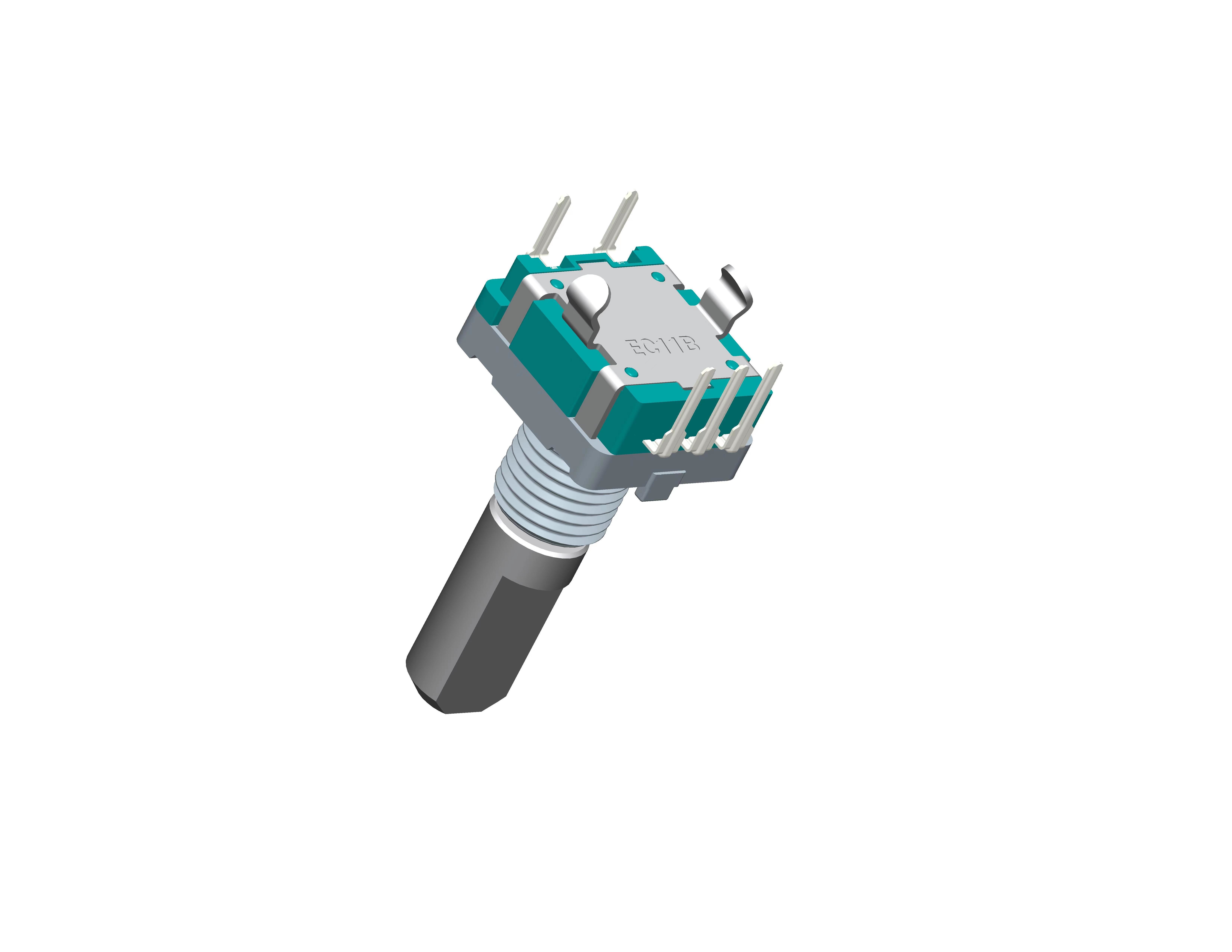

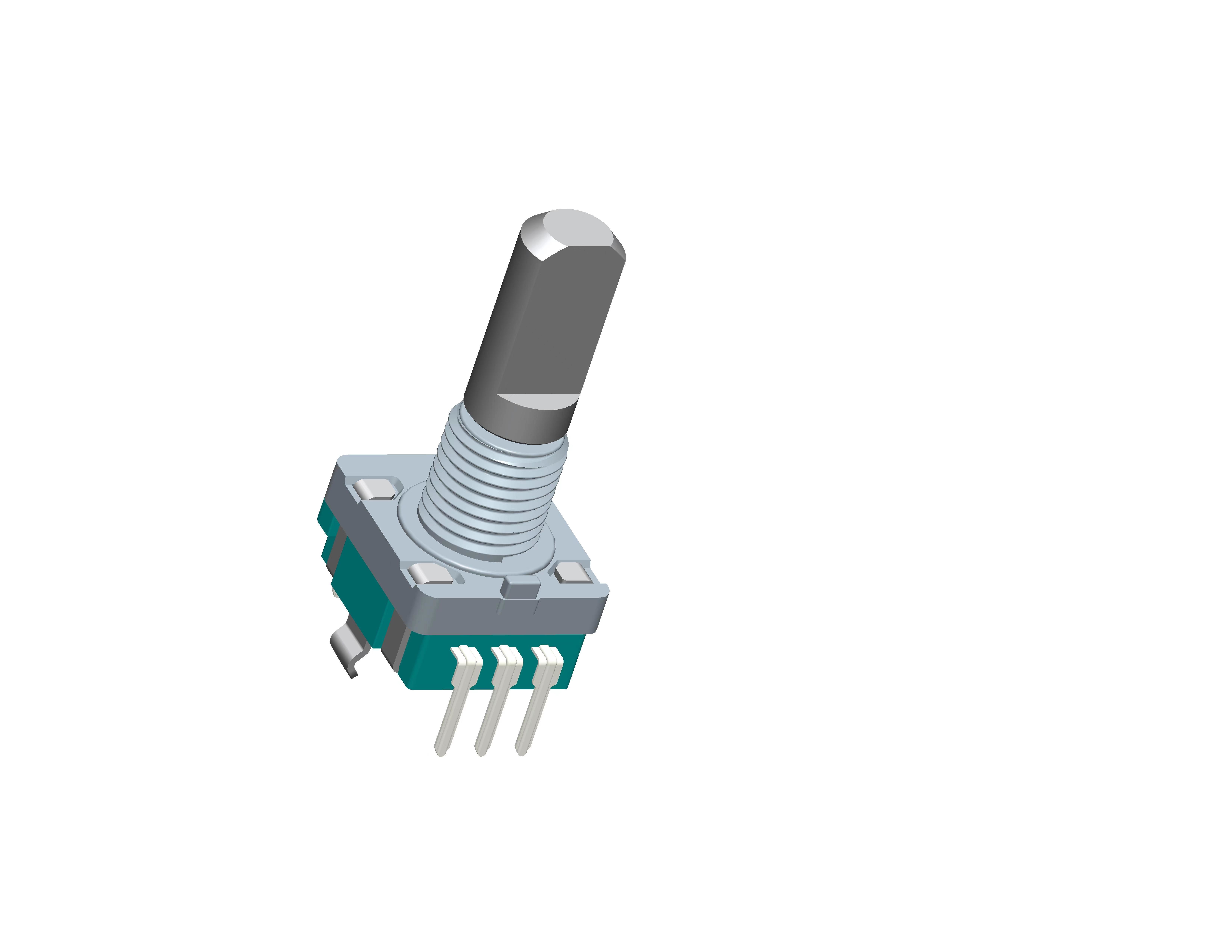

Vertical Mounting EC11 Incremental Rotary Encoder Switch with 0.5mm Travel for volume adjustment

Basic Information
Place of Origin: China
Brand Name: Sanni
Model Number: EC11B22M
Minimum Order Quantity: 2000
Price: 0.5USD
Packaging Details: carton box
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Number Of Detent: 30 Number Of Pulse: 15
Dimensions: 11mm Voltage Proof: 300V AC For 1 Minute Or 360V AC For 2s
Operating Life: 15,000 Cycles Operating Temperature Range: '-40℃ ~ +85℃
Push-on Switch: With Travel Of Push-on Switch: 0.5mm
Highlight:

Vertical Mounting Incremental Rotary Encoder

,

10mA Incremental Rotary Encoder

,

5V DC Digital Incremental Encoder

Vertical Mounting EC11 Incremental Rotary Encoder Switch with 0.5mm Travel for volume adjustment





Description



Incremental encoders also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to analog or digital output signals. Mainly used to adjust the volume, temperature, frequency and function switching.





Features



1. Small size encoder with highly reliable performance;

2.Insulated shaft with push-on switch options;

3. Available in many different variants.

4.Push switch with 0.5mm travel or 0.5mm travel.



Vertical Mounting EC11 Incremental Rotary Encoder Switch with 0.5mm Travel for volume adjustment 0



Features:
Control part orientation Vertical
Actuator configuration Flat
Actuator length 20mm
Number of detent 30
Number of pulse 15
Push-on switch With
Travel of push-on switch 0.5mm
Dimensions 11mm size
Operating temperature range -40℃ ~ +85℃
Electrical performance
Ratings 10mA 5V DC
Output signal Two phase A and B
Max./min. operating current (Resistive load) 10mA/1mA
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute or 360V AC for 2s
Mechanical performance
Detent torque 10±7mN・m
Push-pull strength 100N
Durability
Operating life 15,000 cycles
Push-on switch specifications
Contact arrangement Single pole single throw (Push-on)
Travel 0.5±0.5mm
Operating force 4±2N
Ratings 0.1A 5V DC (500µA 5V DC min. ratings)
Contact resistance (Initial performance/After lifetime) 100mΩ max./200mΩ max.
Operating life 20,000 times







Our Factory



Dongguan SANNI Electronics Technology Co., Ltd. have more than 10year of experiences in design and manufacture of potentiometer, encoder, switches and other electronics components. Factory covers 1,2000 square meters facility areas with 180+ employees. We have professinal and good technical and sales teams to serve your needs.





Our Advantage



1. 4 automation production lines, more than 100 experienced workers for higher precision products.

2. 10+ dedicated and experienced engineers and designers in R&D department.

3. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.

4. Professional Testing instruments and team to ensure product quality.





FAQ



• Q: Can I get sample from you?

• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.

• Q: Do you accept customization?

• A: Yes, customization is acceptable, please contact our sales staffs for consult.

• Q: Can you provide help for technical issues?

• A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.
