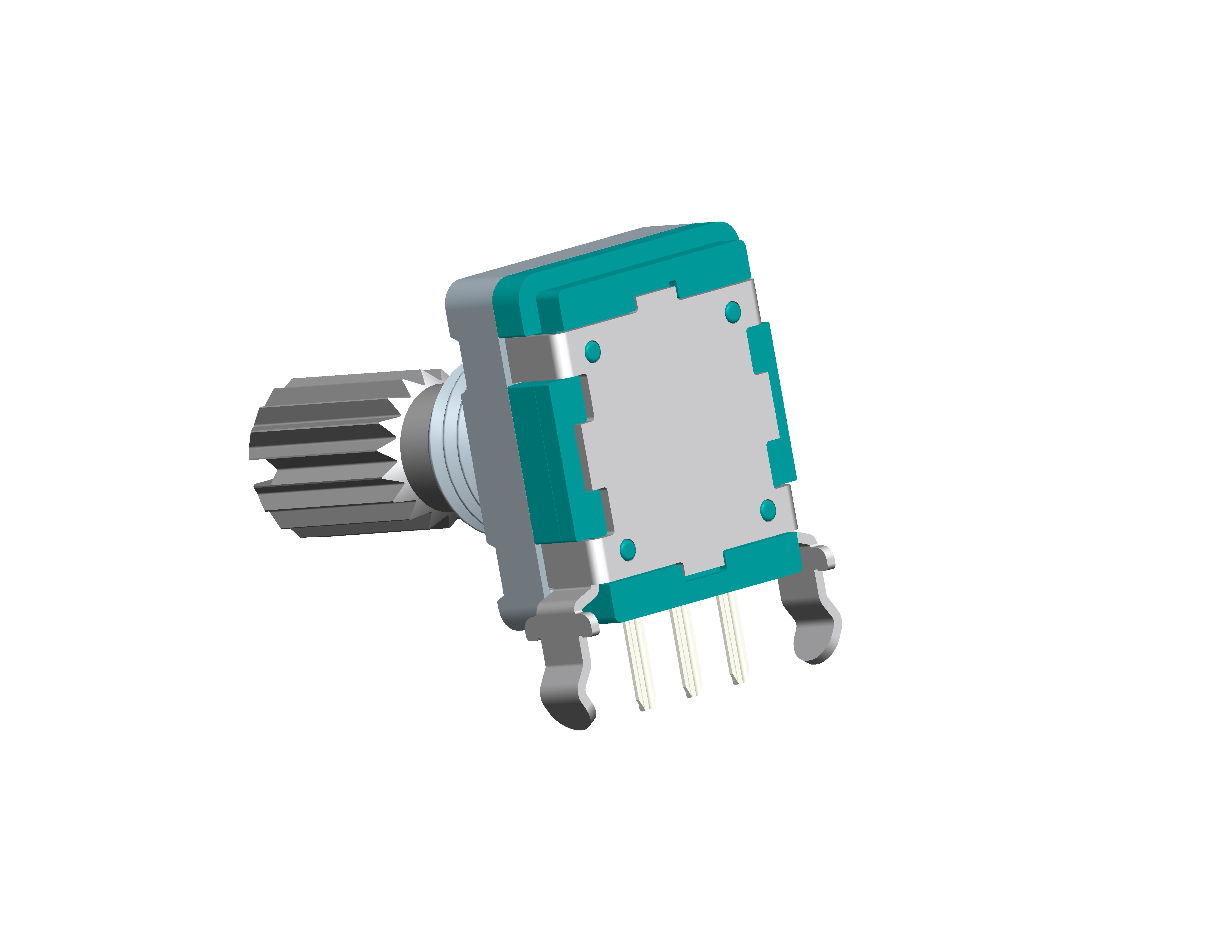

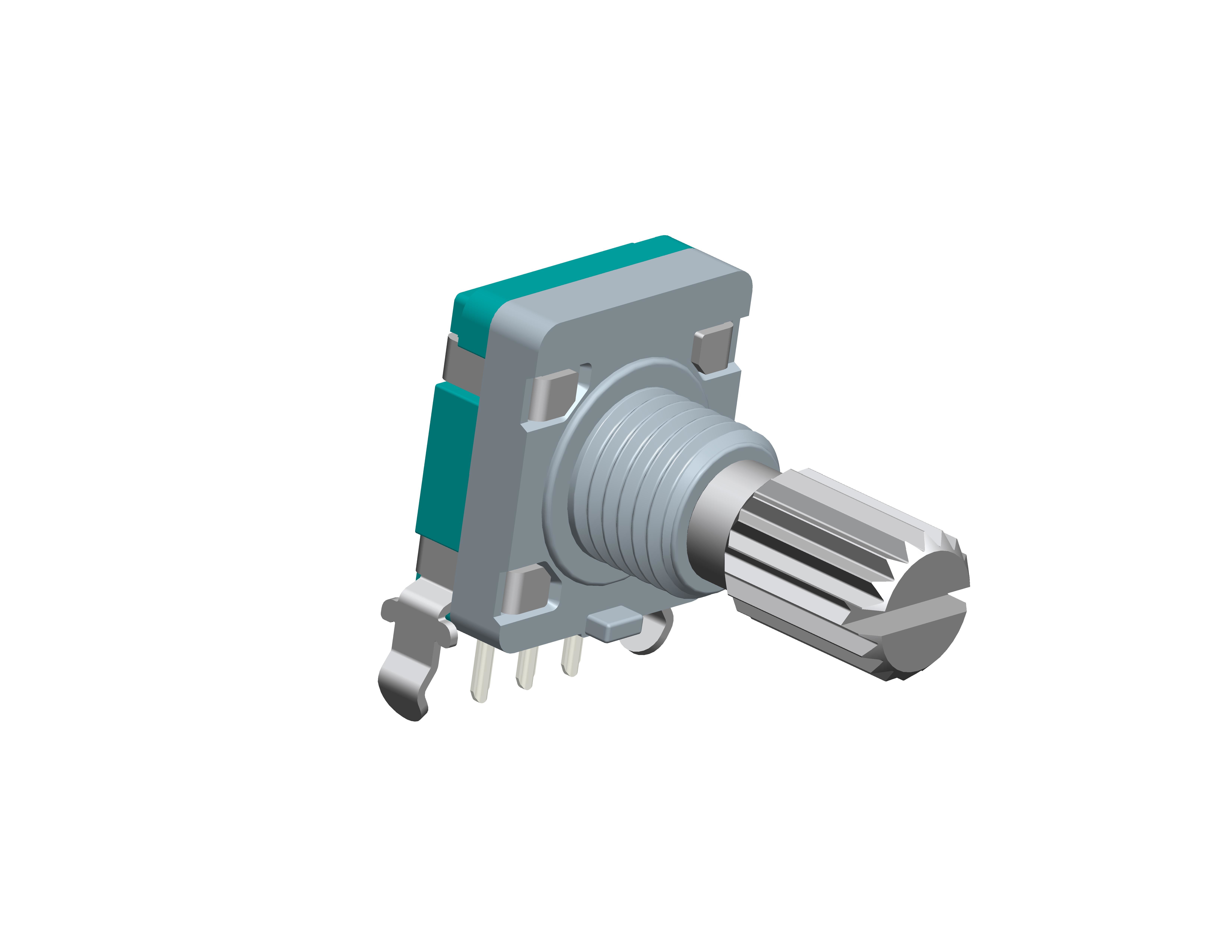

EC11 Incremental Rotary Encoder 15 Pulses , 30 Detent 10mA 5V DC Horizontal Mount Metal Shaft
Features
1. Sealed design encoder with highly reliable performance.
2. Available in many different variants.
3. Shaft length and shape can be adjusted.
4.RoHS Directive Complaint
Application
It is mainly suitable for automotive electronics, household appliances. Household appliances like ovens and washing machines, audio products, timers and other related electronic devices; Mainly used to adjust the volume, temperature, frequency and function switching.
| Features: |
| Control part orientation |
Vertical |
| Actuator configuration |
Flat |
| Actuator length |
20mm |
| Number of detent |
30 |
| Number of pulse |
15 |
| Push-on switch |
With |
| Travel of push-on switch |
0.5mm |
| Dimensions |
11mm size |
| Operating temperature range |
-40℃ ～ +85℃ |
| Electrical performance |
| Ratings |
10mA 5V DC |
| Output signal |
Two phase A and B |
| Max./min. operating current (Resistive load) |
10mA/1mA |
| Insulation resistance |
100MΩ min. 250V DC |
| Voltage proof |
300V AC for 1 minute or 360V AC for 2s |
| Mechanical performance |
| Detent torque |
10±7mN・m |
| Push-pull strength |
100N |
| Durability |
| Operating life |
15,000 cycles |
Our Factory
Dongguan SANNI Electronics Technology Co., Ltd. have more than 10year of experiences in design and manufacture of potentiometer, encoder, switches and other electronics components. Factory covers 1,2000 square meters facility areas with 180+ employees. We have professinal and good technical and sales teams to serve your needs.
Our Advantage
1. 4 automation production lines, more than 100 experienced workers for higher precision products.
2. 10+ dedicated and experienced engineers and designers in R&D department.
3. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
4. Professional Testing instruments and team to ensure product quality.
FAQ
1 Q: Can I get sample from you?
• A: Yes, we can provide the free samples, please contact us for free and tell us which product you need.
2 Q: Do you accept customization?
• A: Yes, customization is acceptable, please contact our sales for detail request.
3 Q: Can you provide help for technical issues?
• A: Yes, we have more than 10 years of research and development in the electronic components industry. If you need technical help in the purchase process, please feel free to contact us.
