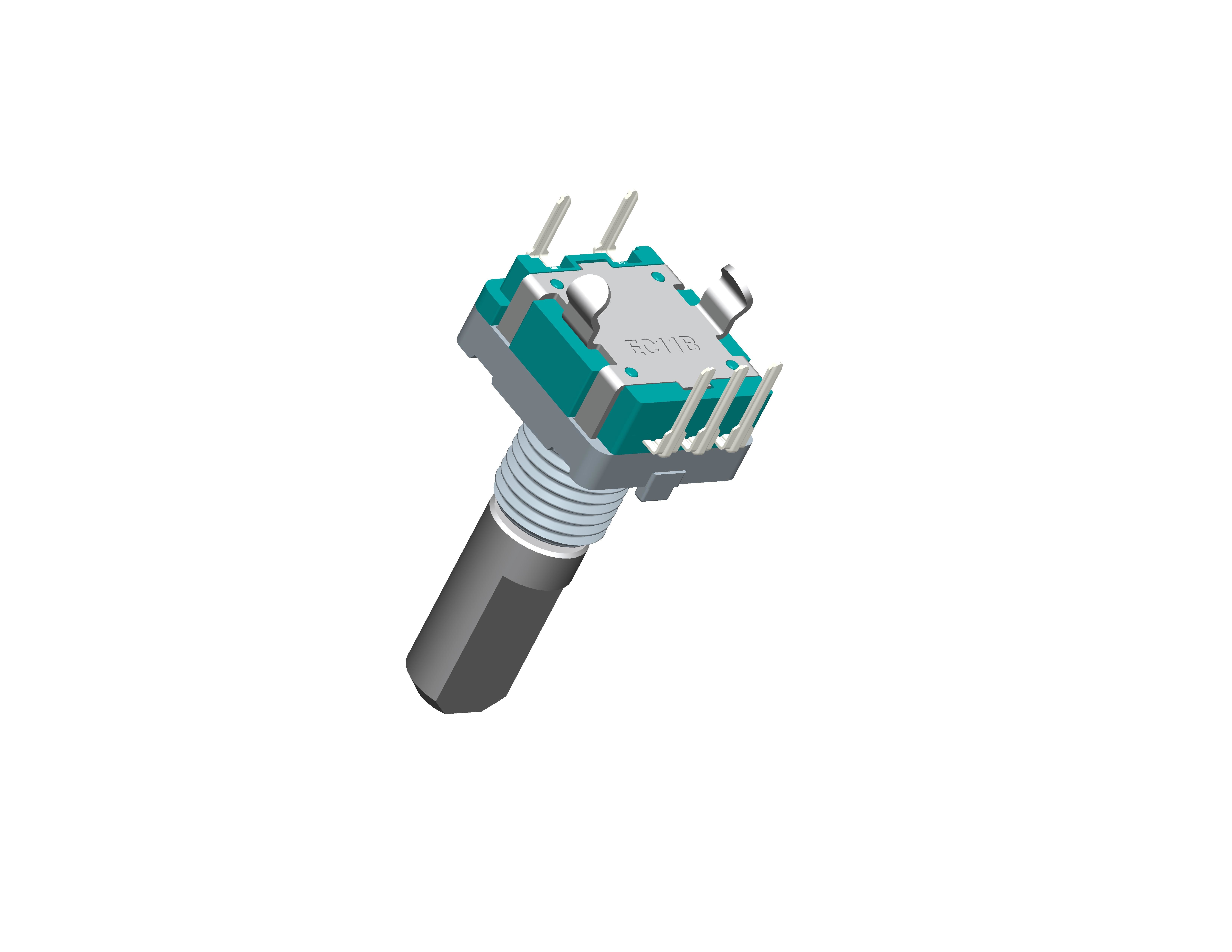

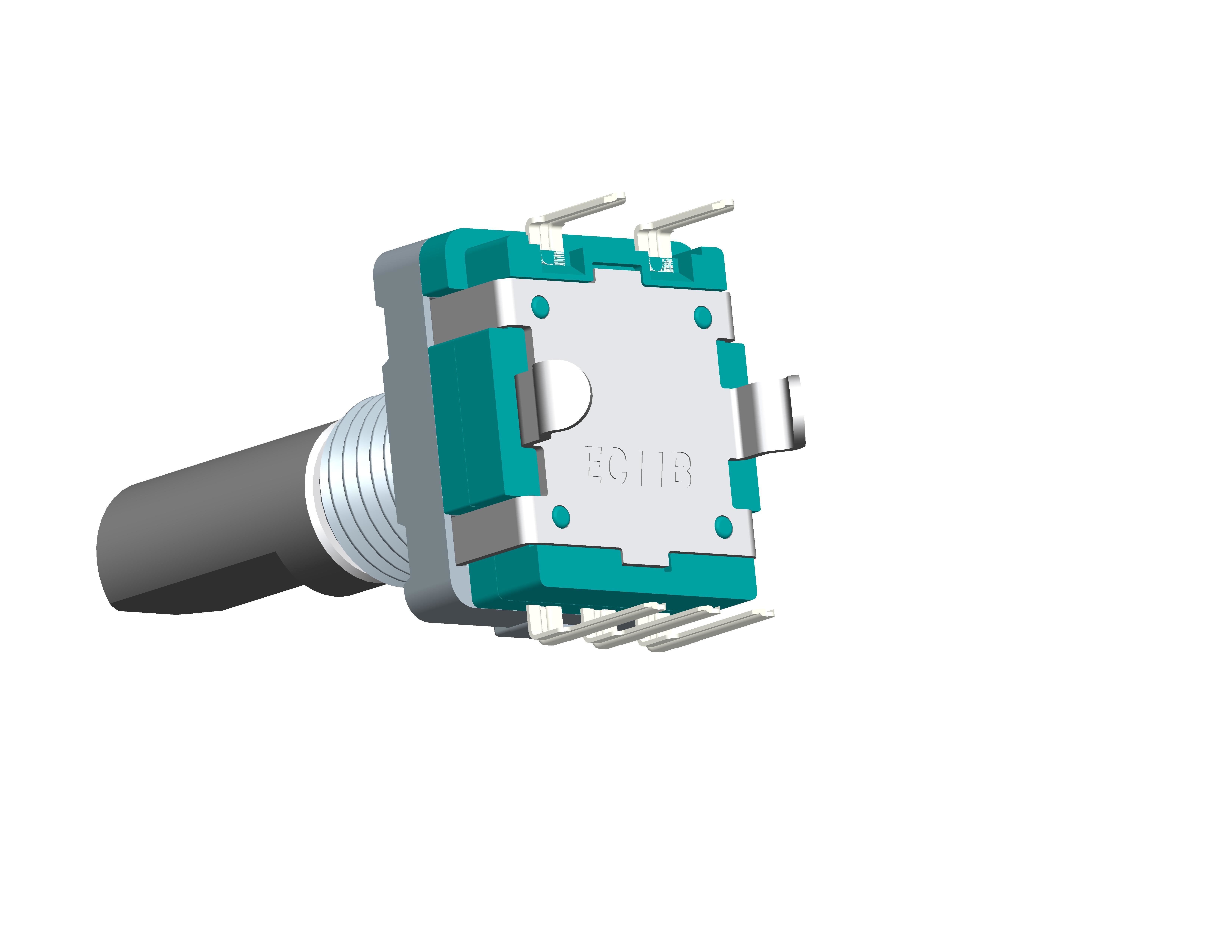

Description of Encoder
The rotary incremental encoder outputs the pulse when rotating, and knows its position through the counting device. When the encoder is not moving or the power is off, it remembers the position by relying on the internal memory of the counting device.
Application of Encoder
Incremental encoder is mainly used to measure speed, acceleration, rotation direction, angle and so on. Widely used in machinery, CNC machine tools, elevator, servo motor, textile machinery, metallurgical machinery, injection machinery, printing and packaging machinery, automatic instruments and other industrial automation measurement and control field.
Specification of Encoder
| Features: |
| Control part orientation |
Vertical |
| Actuator length |
20mm |
| Number of detent |
30 detents |
| Number of pulse |
15 pulses |
| Push-on switch |
With switch |
| Travel of push-on switch |
0.5mm+/-0.3mm |
| Dimensions |
size 11mm |
| Operating temperature range |
-40℃ ～ +85℃ |
| Electrical performance |
| Ratings |
10mA 5V DC |
| Max./min. operating current (Resistive load) |
10mA/1mA |
| Output signal |
Two phase A and B |
| Voltage proof |
300V AC for 1 minute or 360V AC for 2s |
| Insulation resistance |
100MΩ min. 250V DC |
| Mechanical performance |
| Detent torque |
10±7mN・m |
| Push-pull strength |
100N |
| Durability |
| Operating life |
15,000 cycles |
| Push-on switch specifications |
| Contact arrangement |
SPST (Push-on) |
| Travel |
0.5±0.5mm |
| Operating force |
4±2N |
| Ratings |
0.1A 5V DC (500µA 5V DC min. ratings) |
| Contact resistance (Initial performance/After lifetime) |
100mΩ max./200mΩ max. |
| Operating life |
20,000 times |
Our Advantage
1. 4 automation production lines, more than 100 experienced workers for higher precision products.
2. 10+ dedicated and experienced engineers and designers in R&D department.
3. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
4. Professional Testing instruments and team to ensure product quality.
FAQ
1Q: Can I get sample from you?
• A: Yes, we can provide the free samples for testing, please contact us freely and tell us your detail needs.
2 Q: Can you provide help for technical issues?
• A: Yes, we have more than 10 years of research and development in the electronic components industry. If you need technical support, please feel free to contact us.
3 Q: Do you accept customization?
• A: Yes, customization is acceptable, please contact our sales staffs for details.
