| Control Part Orientation: | Horizontal | Actuator Configuration: | Flat |
|---|---|---|---|
| Actuator Length: | 20mm | Number Of Detent: | 30detents |
| Travel Of Push-on Switch: | 0.5mm | Operating Temperature Range: | '-40℃ ~ +85℃ |
| Ratings: | 10mA 5V DC | Detent Torque: | 8±5mN・m |
| Push-pull Strength: | 100N | Operating Life: | 30,000 Cycles |
| Highlight: | 15 pulse Incremental Digital Encoder,EC09 Incremental Digital Encoder,Communication Appliance Incremental Digital Encoder |
||

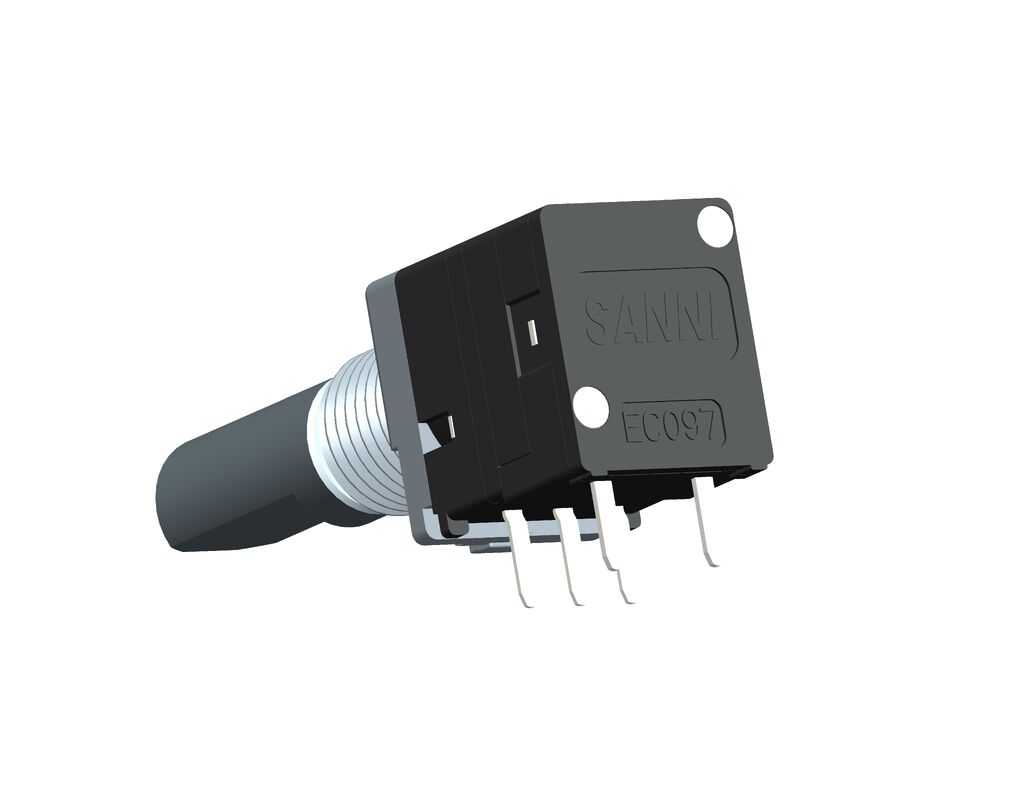

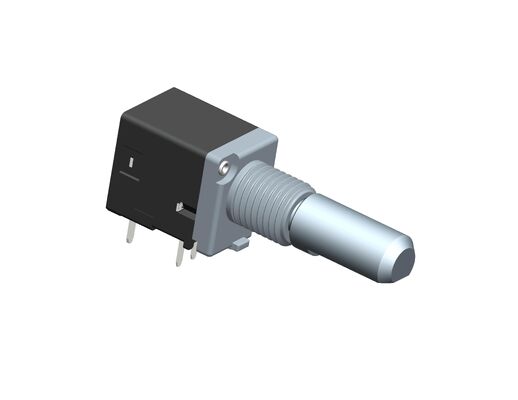

The incremental rotary encoder is a high-quality precision measuring device that accurately detects the absolute angular position of a rotating shaft. It is designed for use in a variety of industrial and commercial applications where accurate and reliable position sensing is essential.
The Incremental Rotary Encoder is constructed with a high-quality aluminum housing, which provides excellent durability and protection against external elements. This material is lightweight yet strong, making it ideal for use in a wide range of environments.
Technical Parameters:
| Features: | |
| Control part orientation | Horizontal |
| Actuator configuration | Flat |
| Actuator length | 20mm |
| Number of detent | 30 |
| Number of pulse | 15 |
| Push-on switch | With |
| Travel of push-on switch | 0.5mm |
| Dimensions | 9m size |
| Operating temperature range | -40℃ ~ +85℃ |
| Electrical performance | |
| Ratings | 10mA 5V DC |
| Output signal | Two phase A and B |
| Max./min. operating current (Resistive load) | 10mA/1mA |
| Insulation resistance | 100MΩ min. 250V DC |
| Voltage proof | 300V AC for 1 minute or 360V AC for 2s |
| Mechanical performance | |
| Detent torque | 8±5mN・m |
| Push-pull strength | 100N |
| Durability | |
| Operating life | 30,000 cycles |
| Push-on switch specifications | |
| Contact arrangement | Single pole single throw (Push-on) |
| Travel | 0.5±0.5mm |
| Operating force | 4±2N |
| Ratings | 0.1A 5V DC (500µA 5V DC min. ratings) |
| Contact resistance (Initial performance/After lifetime) | 100mΩ max./200mΩ max. |
| Operating life | 10,000 times per min. |
